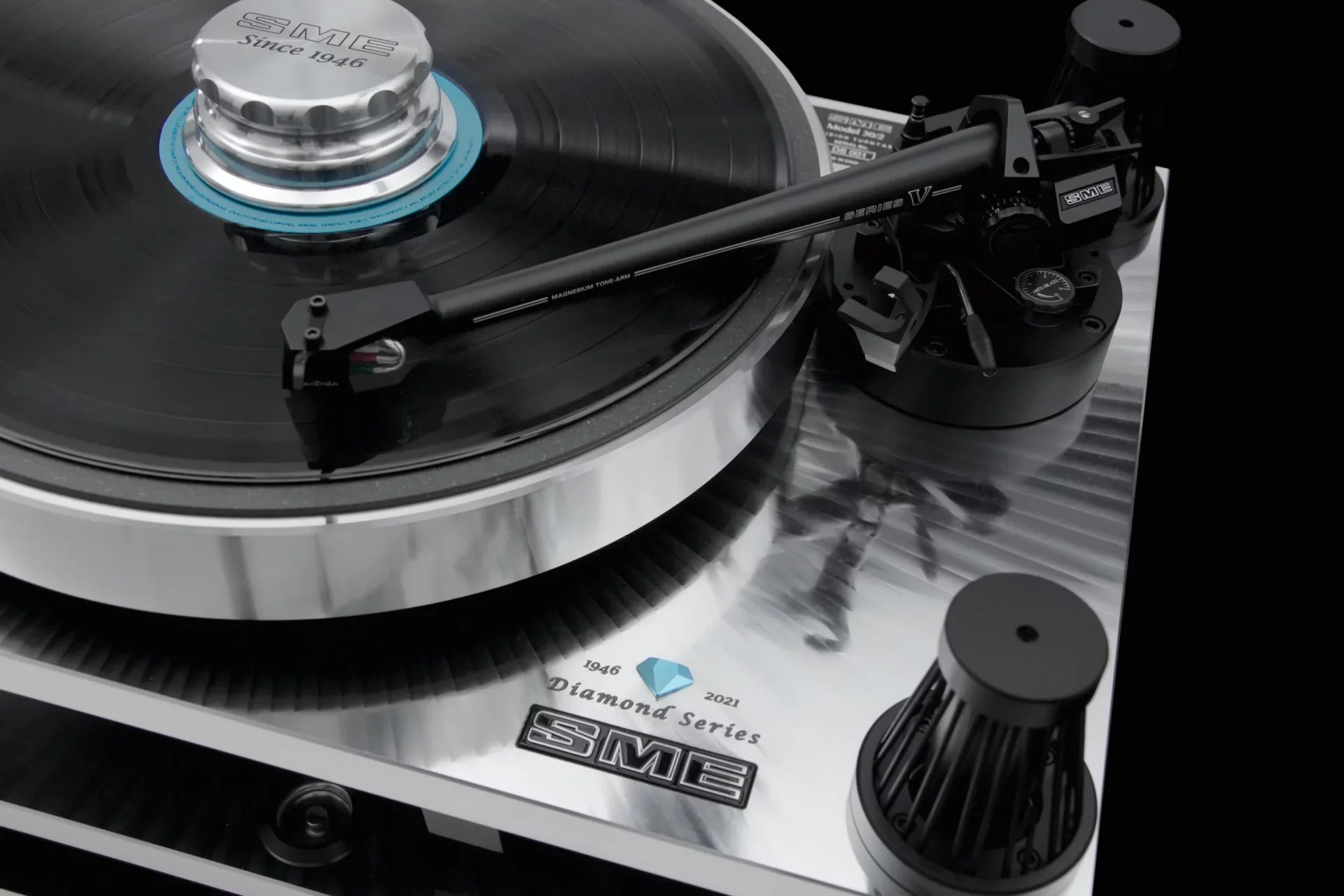

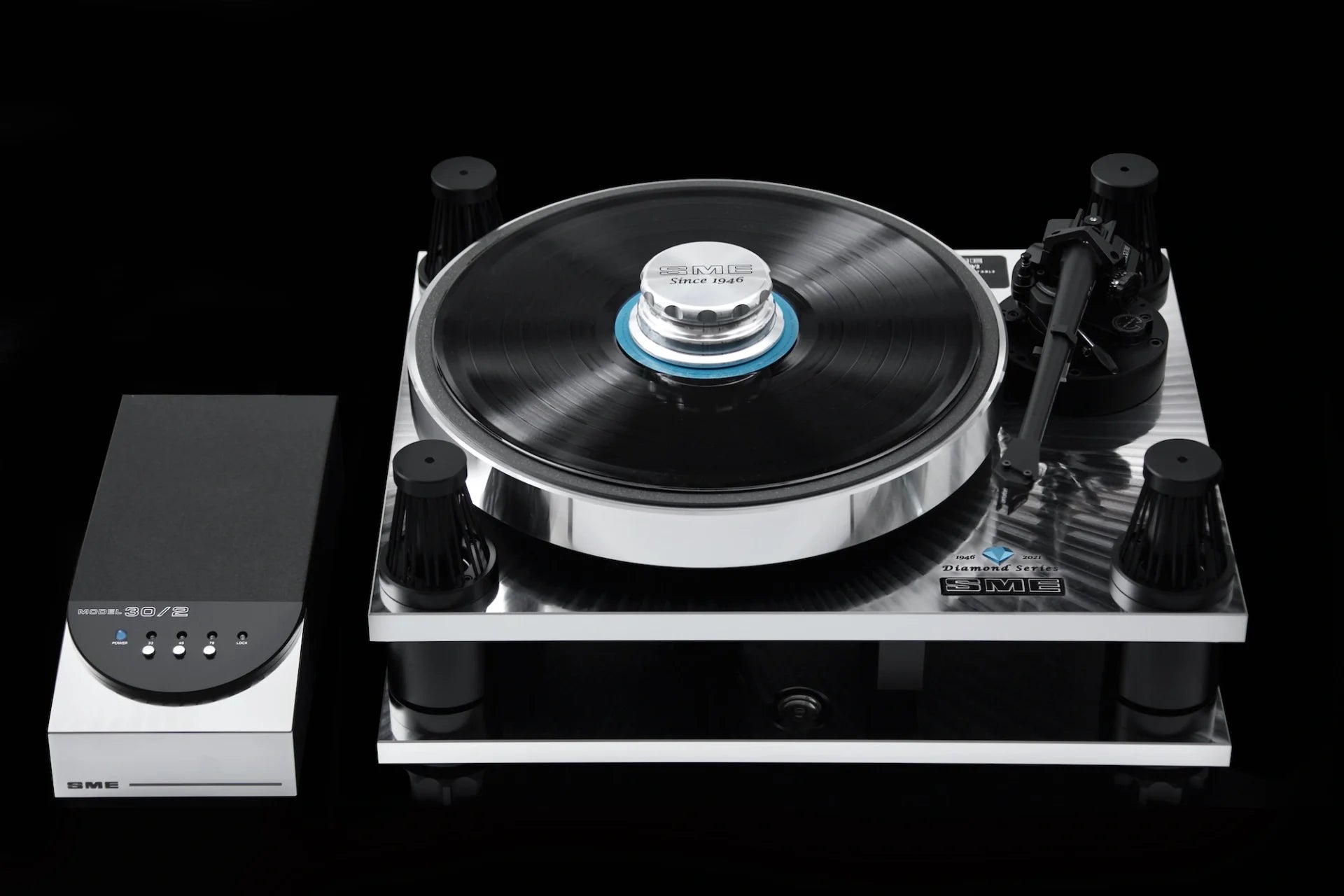

SME Model 30 Mk2 Diamond with Series Vᵢ Tonearm

The SME Model 30 Mk2 Diamond is an exclusive high-end precision turntable developed from SME's acclaimed Model 30 platform. The Diamond Series combines SME's heavy-mass engineering, precision-machined aluminium construction and advanced suspension system with a distinctive diamond-machined finish and hand-finished detailing. This configuration is supplied with the SME Series Vᵢ tonearm with Crystal Cable internal wiring.

Key Features

• SME Model 30 Mk2 Diamond Series turntable.
• SME Series Vᵢ precision tonearm.
• Exclusive diamond-machined finish with hand-finished detailing.
• Heavy-mass CNC-machined aluminium construction.
• Suspended sub-chassis for mechanical isolation.
• 60 purpose-made suspension rings.
• Four suspension-column fluid dampers.
• Precision close-tolerance main bearing.
• 7.5 kg precision-machined aluminium platter.
• 330 mm platter diameter.
• Iso-Damp and diamond-turned platter surface.
• Custom bi-phase AC synchronous motor.
• Dedicated DSP-based Speed Control Unit.
• 33⅓ and 45 RPM operation.
• Independent speed memory settings.
• ±0.01% fine speed adjustment.
• Crystal Cable internal tonearm wiring.
• Four adjustable mechanically de-coupled feet.
• Separate external Power Unit.
• RCA or XLR chassis connectors.
• Reflex-principle screw-down record clamp.

Diamond Series Finish

The Diamond Series Model 30 is precision machine-finished to highlight the sharp lines and distinctive profile of the Model 30 platform. Hand-finished detailing and contrasting black-chrome elements provide the exclusive Diamond Series appearance while retaining the underlying mechanical design of the Model 30.

Precision Chassis & Construction

The Model 30 Mk2 uses a heavy-mass chassis and sub-chassis manufactured from premium-grade aluminium billet using CNC machining. The construction is designed to resist low-frequency flexing, while extensional acoustic treatment helps attenuate unwanted high-frequency resonance.

Suspension & Fluid Damping

The suspended sub-chassis houses the main bearing, platter and tonearm while providing isolation from the main chassis. SME's suspension system uses 60 purpose-made suspension rings, while four fluid dampers within the suspension columns control sub-chassis movement and resonance.

Precision Platter & Main Bearing

The Model 30 Mk2 Diamond uses a precision-machined aluminium alloy platter weighing 7.5 kg. Its Iso-Damp upper surface is diamond-turned with a fine scroll designed to provide a controlled interface with the underside of the record. The main spindle is precision-machined from high-chrome tool steel and supported in a sealed bearing housing.

SME Series Vᵢ Tonearm

The supplied SME Series Vᵢ tonearm provides the precision cartridge positioning and controlled groove tracking expected from SME's reference tonearm platform. The tonearm is supplied with premium Crystal Cable internal wiring for the analogue signal path.

Advanced Drive System

The turntable is driven by a custom-made bi-phase AC synchronous motor controlled by a dedicated electronic Speed Control Unit. The motor system is designed for accurate and stable platter rotation with very low mechanical noise.

Speed Control Unit

The dedicated Speed Control Unit uses a DSP engine to generate two independent precision sine waves controlling the motor's frequency, phase relationship and amplitude. Independent memory settings are provided for 33⅓ and 45 RPM, with fine adjustment available through the rotary control.

Separate Power Unit

An independent external Power Unit houses the mains transformer separately from the Speed Control Unit and turntable. This keeps the transformer away from the sensitive analogue signal cables.

Connectivity

The Model 30 Mk2 Diamond is designed for connection to an external phono stage and amplification system. Chassis-mounted RCA or XLR connectors provide flexible analogue system integration.

Dimensions & Weight

Included Configuration

• SME Model 30 Mk2 Diamond Series Turntable
• SME Series Vᵢ Tonearm
• 7.5 kg Precision-Machined Aluminium Platter
• Reflex-Principle Screw-Down Record Clamp
• Crystal Cable Internal Tonearm Wiring
• Dedicated Speed Control Unit
• Separate External Power Unit
• Four Adjustable Mechanically De-Coupled Feet
