Platinum IW-100 LCRS Speaker
The Platinum IW-100 LCRS is designed to work in front (left and right), center or surround channels in multi-channel theatre systems.
The speaker is ready for on-wall installations in both vertical and horizontal orientation or can be discreetly placed into custom-built cabinetry.
Thanks to its slim design it is an ideal partner for modern curved TVs.
The Platinum IW-100 LCRS design is based on the Platinum F-100 v.3 technology with updates required by its specific construction.
| Design |
In-wall Left / Center / Rear / Surround
3-way, 4 drivers
TLIE-I enclosure

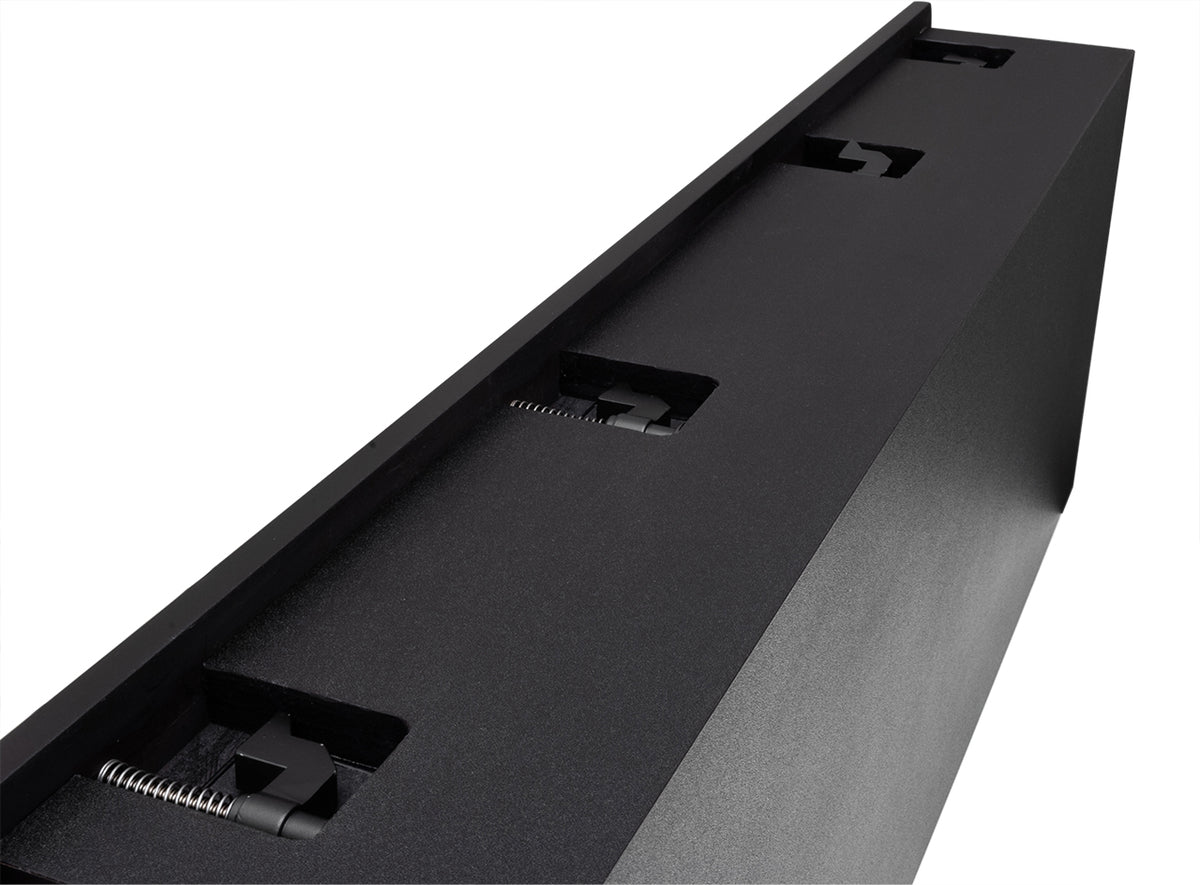

SSCS in-wall clamp system
Crossover points: 550Hz, 4.2kHz
|
| Power handling |
20 -200W (recommended amplifier power)
150W RMS |
| Frequency response |
39Hz - 40kHz |
| Impedance |
4ohm |
| Sensitivity |
92dB |
| High-frequency driver |
25 mm (1”), TPTTD-I, TWG-I |
| Midrange driver |
133 mm (5.25") TPACD-I, TRCS |
| Bass driver |
2 x 165 mm (6.5") TPACD-I, TRCS |
| Features / accessories |
Magnetically mounted grill |
| Dimensions (H x W x D or Dia x D) |
Vertically:
77 x 31 x 12.5 cm (front panel with grill)
74 x 28 x 11.2 cm (front panel without grill)
71.6 x 25.6 x 11 cm (dimensions in the wall) |
| Cutout Dimensions (H x W or Dia) |
72.4 x 26.4 cm (vertically) |
| Minimum Mounting Depth |
12 cm |
| Weight |
13 kg / pc. |
