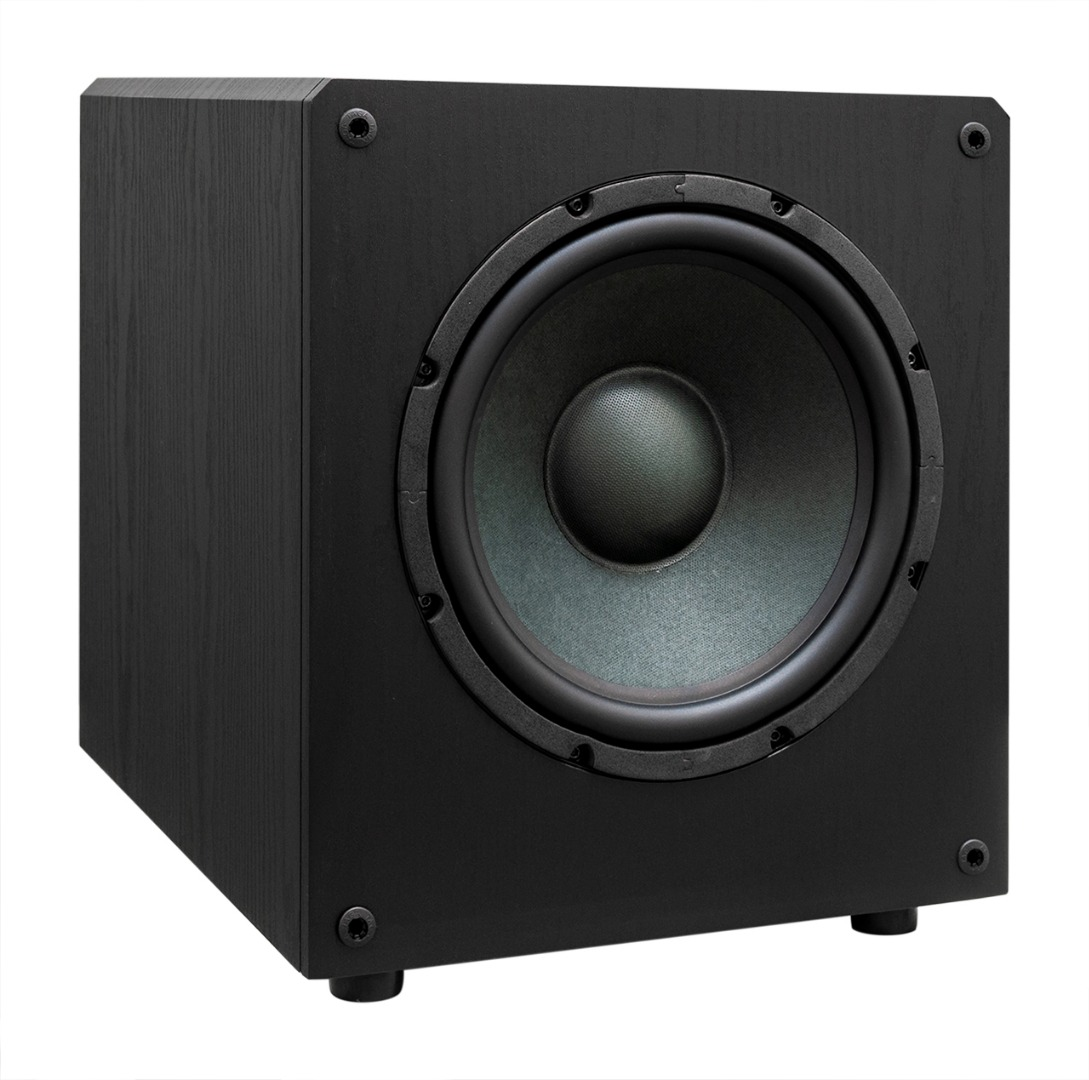

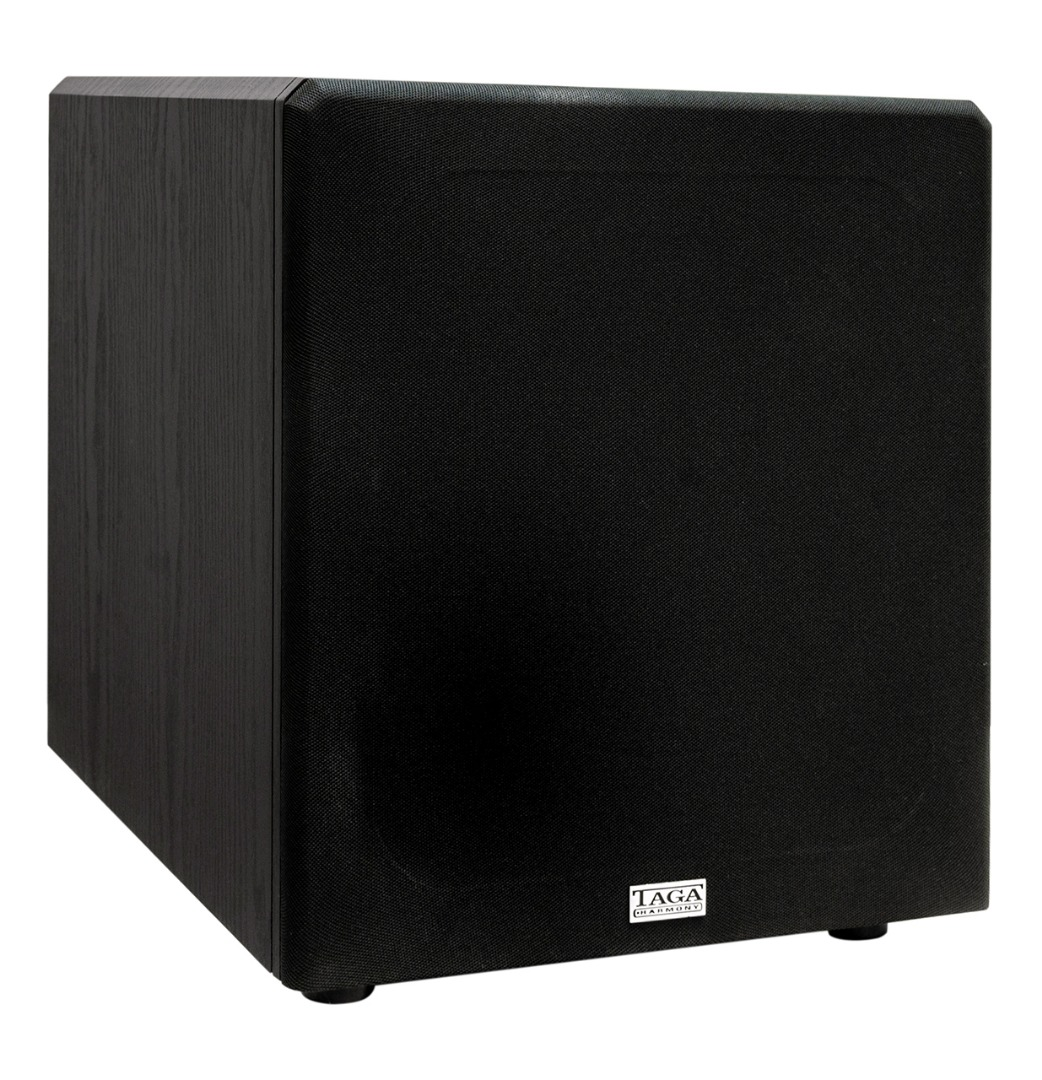

TSW-90 v.4 Subwoofers

Description

More bass! More fun!The TSW-90 v.4 is a 10” single driver subwoofer with built-in high-current amplifier and utilizing slotted bass port on the rear.The v.4 version utilizes a totally redesigned amplifier and power boards with higher grade components (capacitors etc.) as well as a heavily modified woofer.The new built-in amplifier delivers slightly higher power output, better

Technical Specs

Design
Active subwoofer, 1 driver TLIE enclosure

Amplifier power
95W RMS 260W Dynamic Peak Class A/B

Frequency response
30Hz - 150Hz

Bassreflex
Single, rear, slotted

Bass driver
255 mm (10”), paper 6ohm

Crossover filter frequency
35Hz - 150Hz (variable)

Phase regulation
0°, 180°

Inputs
1 x Line-level (L/R) 1 x SUB (LFE) 1 x High-level

Features / accessories
Auto On/Off Single RCA-RCA Subwoofer Cable Removable IEC power cord

AC power / power consumption
220V-240V 50/60Hz, 150W / <0.5W (Standby Mode)

Dimensions (H x W x D)
38.2 x 33 x 41.6 cm (incl. feet)

Weight
15 kg / pc.
