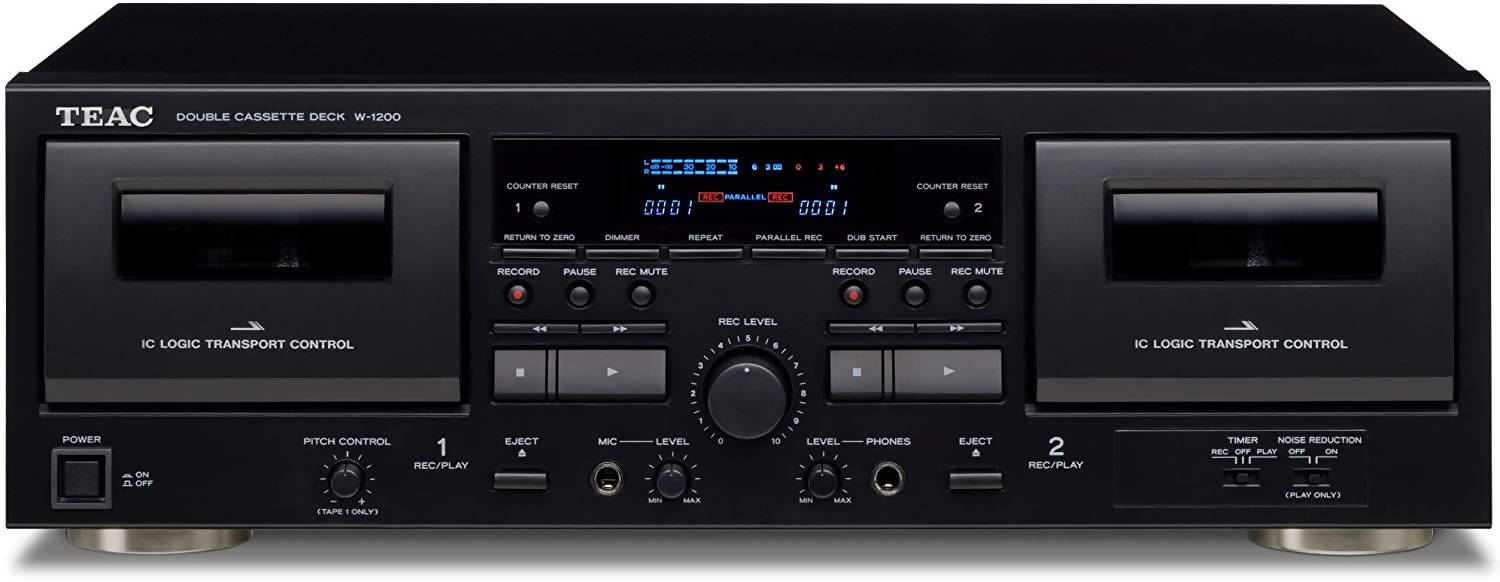

Product Overview
This cassette deck system utilizes two simple and reliable one-way cassette mechanisms, allowing seamless playback and recording with uninterrupted operation. While one deck is playing or recording on TAPE1, users can change the cassette tape in TAPE2, preparing it for the next playback or recording. The independent drive sections in both decks enable users to operate one deck (change tapes, fast forward, or rewind) without affecting the other, ensuring continuity throughout. The system supports playback of Normal (Type I), Chrome (Type II), and Metal (Type IV) tapes and recording on Normal and Chrome-type tapes.
Key Features
- Two independent cassette decks for uninterrupted playback and recording.
- Supports playback of Normal, Chrome, and Metal tapes, recording on Normal and Chrome tapes.
- Pitch control for TAPE1 playback (±12%) for enhanced audio tuning.
- Fast rewind time of approximately 120 seconds for a C-60 tape.
- USB digital output with full-speed USB2.0 support and multiple sampling frequencies.
- Multiple output options including RCA analog, headphone output, and USB digital.
- Compact design with remote control, batteries, and RCA cable included in the package.
Technical Specifications
| Specification |
Details |
| Deck section |
4-track, 2-channel Stereo |
| Head configuration |
REC/PLAY head - one each for TAPE1 and TAPE2, ERASE head - one each for TAPE1 and TAPE2 |
| Tape speed |
4.8cm/sec |
| Pitch control |
±12% (TAPE1 PLAYBACK only) |
| Fast rewinding time |
Approximately 120 seconds (C-60 tape) |
| Wow and flutter |
0.25% (W.RMS) |
| Frequency response - Chrome tape (Type II) |
30 to 15k Hz (±4dB) |
| Frequency response - Normal tape (Type I) |
30 to 13k Hz (±4dB) |
| Total S/N ratio |
59dB (at max recording level input, A-weight) |

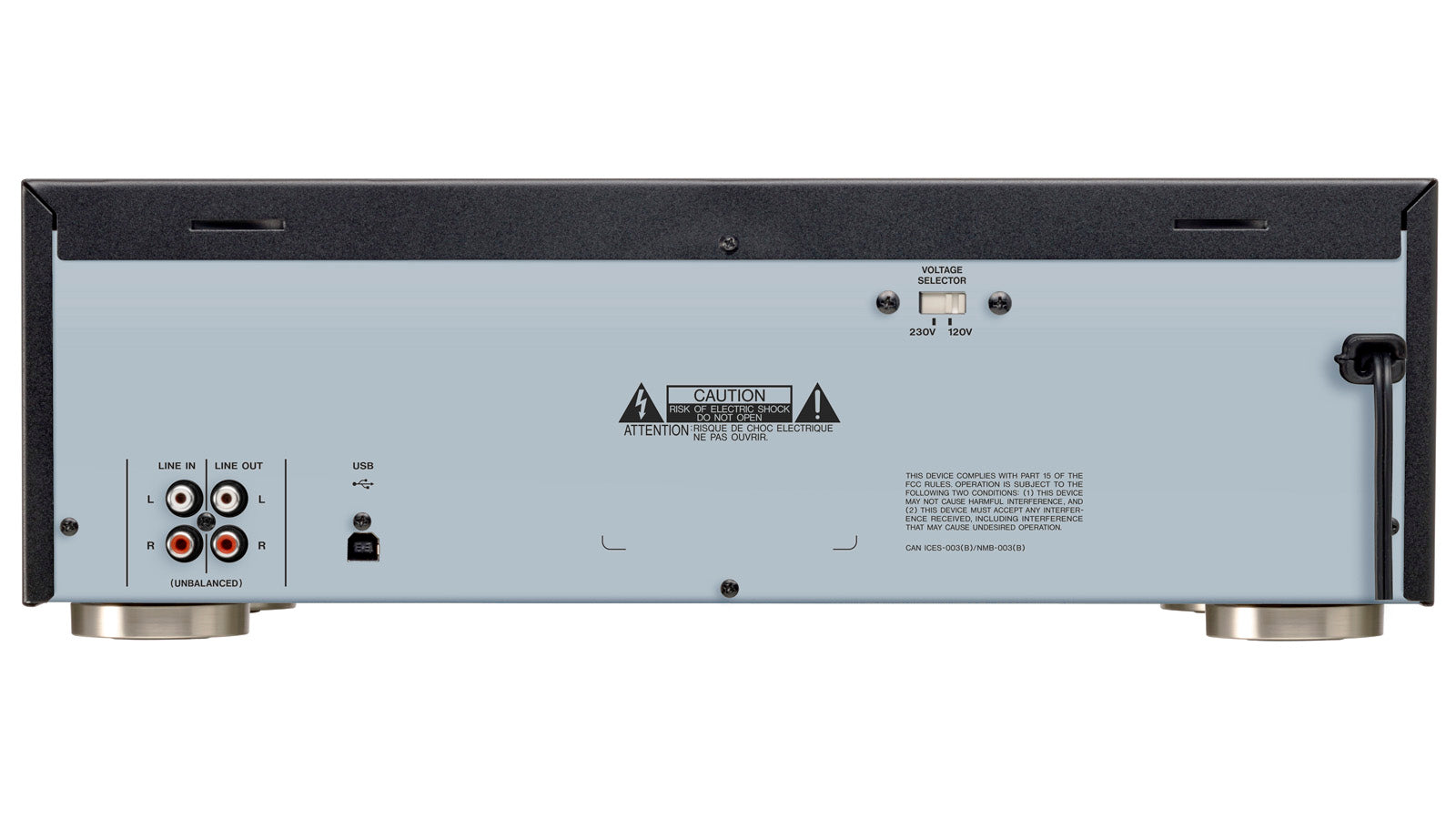

| Analog audio input - Connectors |
RCA × 1 pair |
| Nominal input level |
0.28V |
| Input impedance |
33k ohms |
| Mic input - Connector |
Standard 6.3mm (1/4") stereo jack |
| Nominal input level (Mic) |
0.38mV |
| Input impedance (Mic) |
3k ohms or more |
| Analog audio output - Connector |
RCA × 1 pair |
| Nominal output level |
0.46V |
| Output impedance |
1k ohms |
| Headphone output - Connector |
Standard 6.3mm (1/4") stereo jack |
| Output power (Headphone) |
15mW (at 32 ohms loaded) |
| USB digital output - Connector |
USB Type-B |
| USB protocol |
USB2.0 FULL SPEED |
| Sampling frequency |
8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48k Hz |
| Bit-depth |
8 / 16bit |
| Operating power |
AC 120V, 60Hz or AC 230V 50Hz |
| Power consumption |
22W |
| Dimensions |
17.1"(W) × 5.7"(H) × 11.3"(D) / 435(W) × 145(H) × 285.8(D)mm |
| Weight |
US/Canada: 9.3lbs (4.2kg), UK/Europe: 10.2lbs (4.6kg) |
| Accessories |

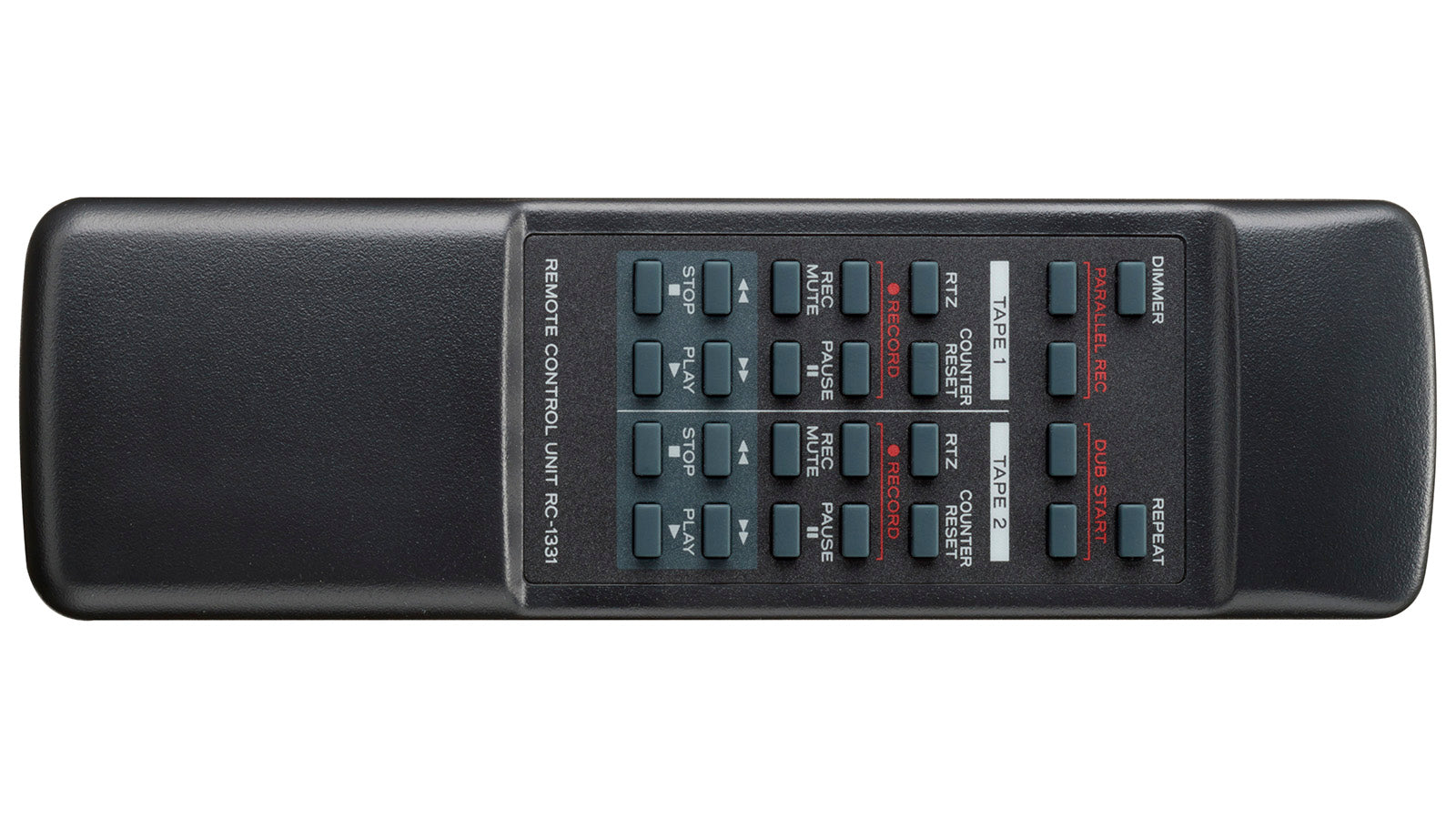

Remote control (RC-1331), AA batteries × 2, RCA audio cable, Owner's Manual (including Warranty) |
