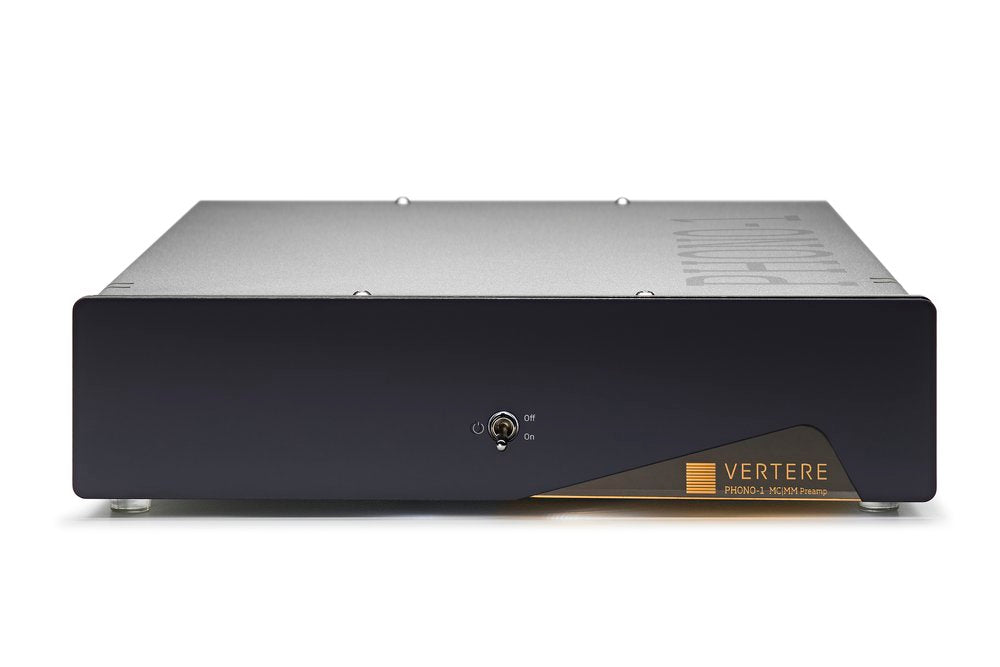

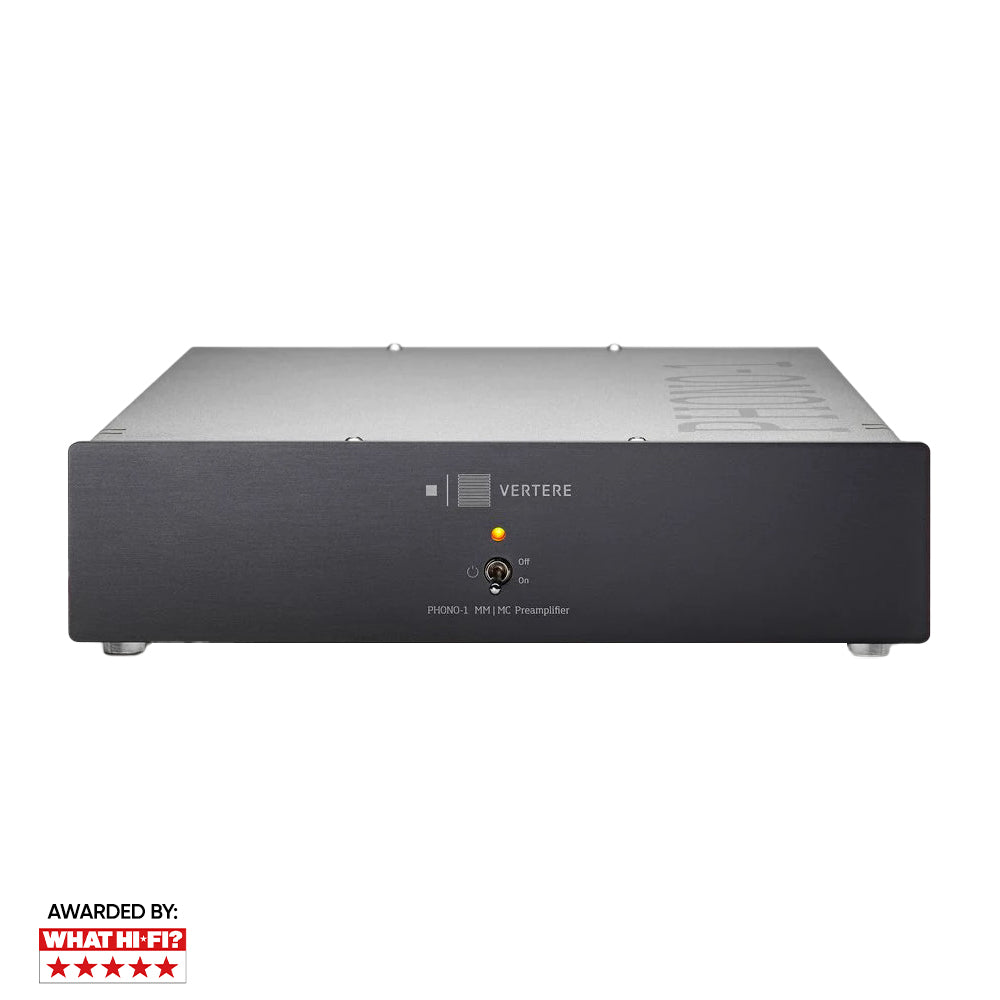

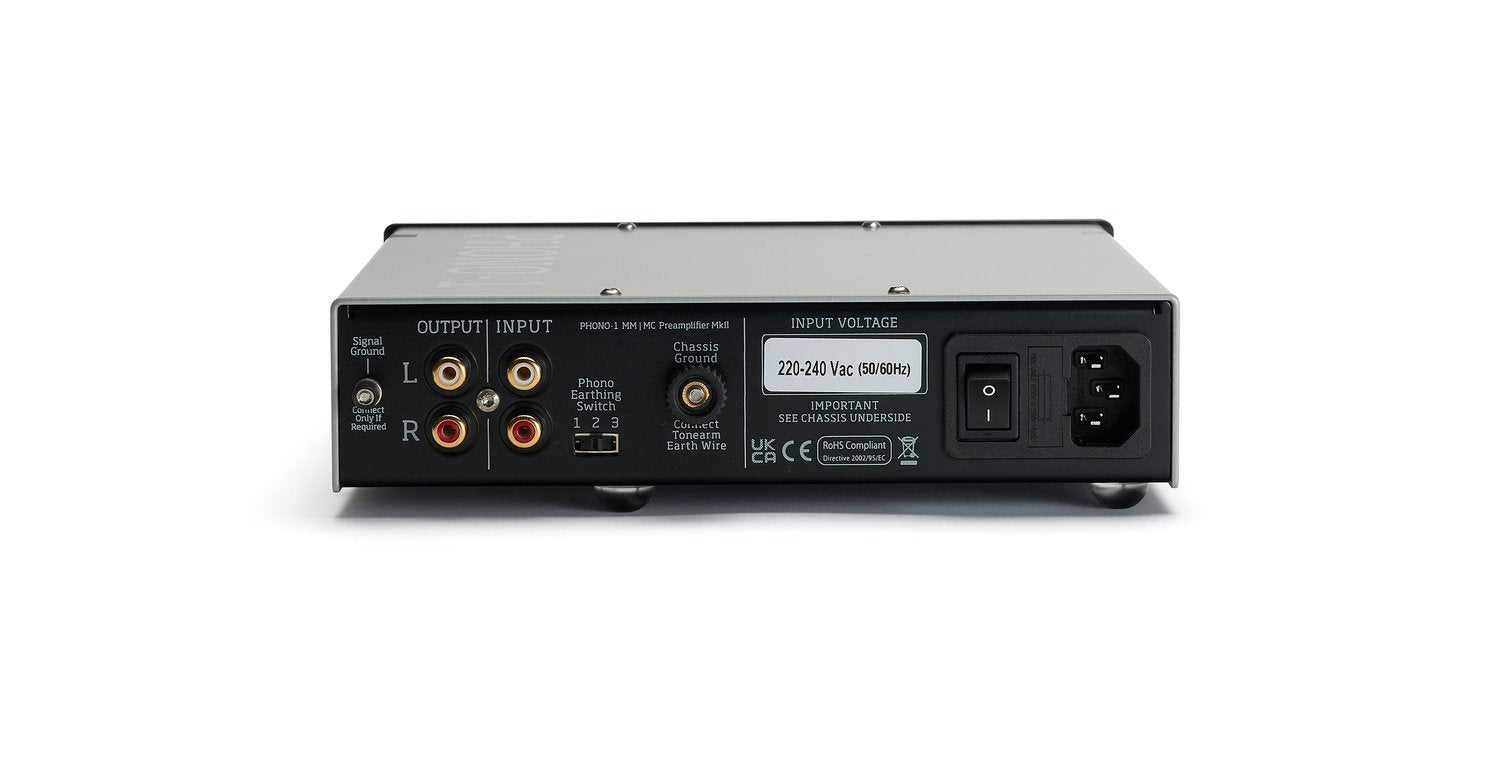

The new MC | MM Preamplifier PHONO-1 MkII L gets the best from any high-quality record player, with maximum dynamic range and supreme detail resolution. With more than 10 gain settings, 15 resistance and 9 capacitance settings, PHONO-1 MkII L leaves nothing to chance. It makes the perfect match for almost any Moving Coil or Moving Magnet cartridge.

Key Features

• Realise the potential of any high-quality record player
• Superb dynamics and detail with extremely accurate RIAA linearisation
• Perfect level and load matching for Moving Coil and Moving Magnet cartridges
• Brings continuous enjoyment when playing records, without exception

Technical Specification

• Type
  MC/MM Preamplifier
  Main Phono Circuit on Separate Gold Plated PCB
• Power Supply
  Linear, Int. Switchable
  Transformer on Separate Gold Plated PCB
• Gain Settings
  40.2dB to 62.8dB
  High Gain version - Add 6.4dB to all settings
• Input Impedance Settings Resistance
  47k for MM
  78R to 47K for MC - in 15 Steps
• Capacitance
  100pF & 470pF for MM
  100pF to 1.02uF for MC – In 9 Steps
• Frequency Response
  20Hz – 20kHz
  +/- 0.2dB
• Noise
  < -78dB – AWD
• THD-N
  0.03%
• Dimensions (W x D x H)
  210 x 235 x 55mm (Incl. Switches & Feet)
• Weight
  2kg
