Marantz CD6007
Marantz HDAM Technology
Marantz developed its own discrete circuit boards to replace standard ICs. These HDAMs consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-Amps but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. In the CD6007, the proprietary HDAM-SA2 circuit improves on its previous HDAM module for a more stable power supply. The idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.
Reference Quality D/A Conversion
The CD6007 features a Hi-Res D/A conversion. It is equipped with a reference class D/A converter, offering two selectable filter options, and provides up to 192-kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, pleasant mids and smooth extended highs for CD playback and Hi-Res formats from USB memory stick.
High Current Power Supply
The audio power supply employs high speed, high current Schottky Barrier Diodes and high value storage capacitors. The size of the power supply capacitors has been increased to former models by 120% for improved current stability and reduced AC noise during high demanding listening sessions.
High Slew Rate Op-Amp + HDAM-SA2
The CD6007 offers an upgraded and redesigned headphone amplifier section. It inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience.
Technical Specification
- CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC - Yes / Yes / No / Yes / Yes / No
- CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - No / No / Yes / Yes / Yes
- Data Disc Compatibility: DSD / WAV / ALAC - No / No / No
- DAC operation mode: USB B type / Coax / Optical - No / No / No
- Asynchronous mode rear USB - No
- Bit-perfect transmission - No
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 - No
- Signal isolator for DAC Mode operation - No
- HDAM version - HDAM+HDAM SA2
- Power Transformer: Toroidal / El - No / Yes
- High Grade Audio Components - Yes
- Customised Components - Yes
- Symmetric circuit layout - Yes
- Copper Plated Chassis - No
- Extra metal plate for chassis strengthing - Yes
- Digital out off / Audio EX Mode - Yes / No
- Headphone: Standard / Buffer / Current feedback - No / Yes (HDAM-SA2) / No
- Selectable filter: CD / SA-CD / DAC-Mode - Yes / No / No
- Marantz Musical Mastering - Yes
- Marantz Musical Mastering Stream - No
- Marantz Musical Mastering Conversion - No
- Separated rectifier circuit for analogue and digital circuitry - Yes
- Display: Dimmer / Off - Yes / Yes
- Low noise LCD display - No
- 5mm Aluminum top cover - No
- Program Play (CD / SA-CD) - 25
- Repeat - Yes
- Random Play - Yes
- Start Sound Mode for SA-CD - No
- Analogue Out (Cinch) - 2ch
- Balanced Out - No
- Digital Optical In / Out - No / 1
- Digital Coaxial In / Out - No / 1
- Sample Rate digital In - No
- Gold Plated Cinch - Yes
- USB Audio (Front) / Made for iPod / Made for iPhone® - Yes / No / No
- USB-A: FLAC / WAV / AIFF / ALAC / DSD - Yes
- USB type B input for PC (rear) Sample Rate USB type B In - No
- Asynchronous mode rear USB - No
- USB type B input for PC (rear) - No
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 - No
- D-Bus - Yes
- Headphone Out - Yes
- Headphone Volume Control - Yes
- Mechanism - JTL-101Y
- D/A Conversion - Multi-bit, Delta-Sigma
- DAC IC - AK4490
- Digital Filter - AK4490
- Noise Shaper - AK4490
- Low Pass Filter stage - HDAM
- Output Buffer - HDAM SA2
- Headphone amp - HDAM-SA2buffer+OPAMP
- Frequency Response (Cust.) - No
- Dynamic Range (SA) - No
- Signal to Noise Ratio (SA) - No
- Total Harmonic Distortion (SA) - No
- Channel Separation (SA) - No
- Frequency response - 2 Hz - 20 kHz
- Dynamic Range - 100 dB
- Signal to Noise Ratio - 110 dB
- Total Harmonic Distortion - 0.00002
- Channel separation - 98 dB
- Metal Front Panel - Yes
- Remote Control - RC004PMCD
- Power Consumption in W - 32
- Standby Consumption in W - 0.3
- Auto Power off - Yes
- Detachable Power Cable - Yes
- Maximum Dimensions (W x D x H) in mm - 440 x 340 x 105
- Weight in kg - 6.5
- Carton Maximum Dimensions (W x D x H) in mm - 517 x 468 x 189
- Carton Weight (inc. product) in kg - 8.8

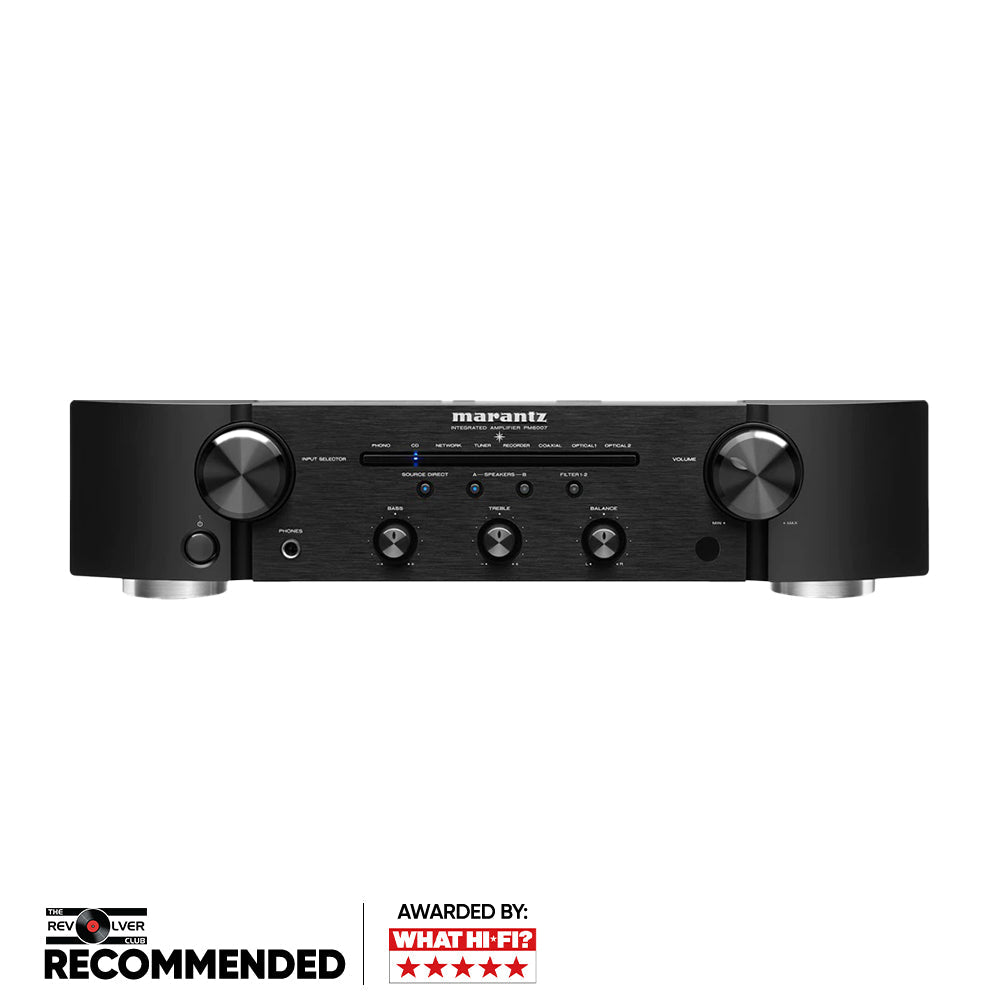

Marantz PM6007
The Marantz PM6007 Integrated Amplifier with Digital Connectivity delivers Marantz’ most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz) of power-per-channel. You can easily connect both analogue and digital sources or connect your turntable to the built-in phono pre-amplifier. Listen to your favourite Hi-Res audio content through the 192-kHz/24-bit D/A converter and experience enhanced bass with a subwoofer-out option.
A World Of Marantz Awaits
The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.
Meticulously And Masterfully Tuned
During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.
Wide Range Of Connectivity
Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analogue inputs, one coaxial input and two optical digital inputs.
An Updated Audio Experience
The carefully selected high-quality DAC offers a clean sound for a real Marantz experience.
Technical Specification
-
Power Output (8 / 4 Ohm RMS) - 45 W / 60 W
- Frequency response - 10 Hz - 70 kHz
- Total Harmonic Distortion - 0.08%
- Damping Factor - 100
- Input Sensitivity: MM - 2.2 mV / 47 kOhm
- Input Sensitivity: MC - No
- Signal to Noise Ratio: MM/MC - 83 dB / No
- Input Sensitivity: High level - 200 mV / 20 kOhm
- Input Sensitivity: Balanced High level - No
- Signal to Noise Ratio: High level - 102dB(2V input)
- Input Sensitivity: Power Amp Direct IN - No
- Signal to Noise Ratio: Power Amp Direct IN - No
- Power Consumption in W - 155
- Standby Consumption in W - 0.3
- Auto Power off - Yes
- Detachable Power Cable - Yes
- Remote Control - RC004MCD
- System Remote Function - Yes
- Maximum Dimensions (W x D x H) in mm - 440 x 370 x 105
- Weight in kg - 7.6
Q Acoustics 3050i
The all new, Q 3050i floorstanding speaker has been created using design principles taken from our critically acclaimed Concept 500 Series, resulting in stunning sonic performance and beautiful aesthetics.
The Q 3050i speakers boast a range of unique technologies including HPE™ and P2P™ to ensure these floorstanding speakers deliver a truly exceptional sound.
HPE™ (Helmholtz Pressure Equalizer) technology designed to convert pressure to velocity and reduce the overall pressure gradient within the speaker enclosure, has been applied to the Q 3050i to reduce cabinet resonance. This technology is perfect for taller loudspeakers that tend to resonate at a single favoured frequency.
Q Acoustics P2P™ bracing across the 3000i Series supports the parts of the enclosure that need to be stiffened making the enclosures exceptionally rigid, improving the focus of the stereo image and giving the soundstage more accuracy than in previous ranges.
Key Features
-
Striking floorstanding Speakers with twin 165mm and 22mm precision drivers
- The Q 3050i cabinet uses Point-to-Point (P2PTM) bracing techniques to reduce intrusive cabinet vibrations for a purer sound
- HPE™ technology eliminates sympathetic resonance within the enclosures by equalising air pressure within the 3050i cabinet
- Conventional terminal panel cut-outs have been removed, giving greatly improved structural integrity to the enclosures and new low profile binding posts
- Uses a 22mm decoupled High Frequency Driver with wide surround creating a wide even dispersion of stereo
Technical Specification
- Enclosure type: 2-way reflex
- Bass Unit: 2 x 165 mm ( 6.5 in)
- Treble Unit: 22 mm (0.9 in)
- Frequency Response (+3 dB, -6 dB): 44 Hz – 30 kHz
- Average Impedance: 6 Ohm
- Minimum Impedance: 4 Ohm
- Sensitivity (2.83 V@1 m): 91 dB
- Stereo Amplifier: 25 - 100 W
- AV Receiver (2 ch. driven): 50 - 165 W
- Internal Amplifier Power: -
- Crossover Frequency: 2.5 Hz
- Effective Volume: 32.4 L (1977 cu in)
- Dimensions H/D/W mm: 1020 x 310 x 320 (210mm without stabilizers) mm
- Enclosure width: 200mm (7.9 in)
- Weight (per speaker): 17.8 kg (39.2 lbs)
