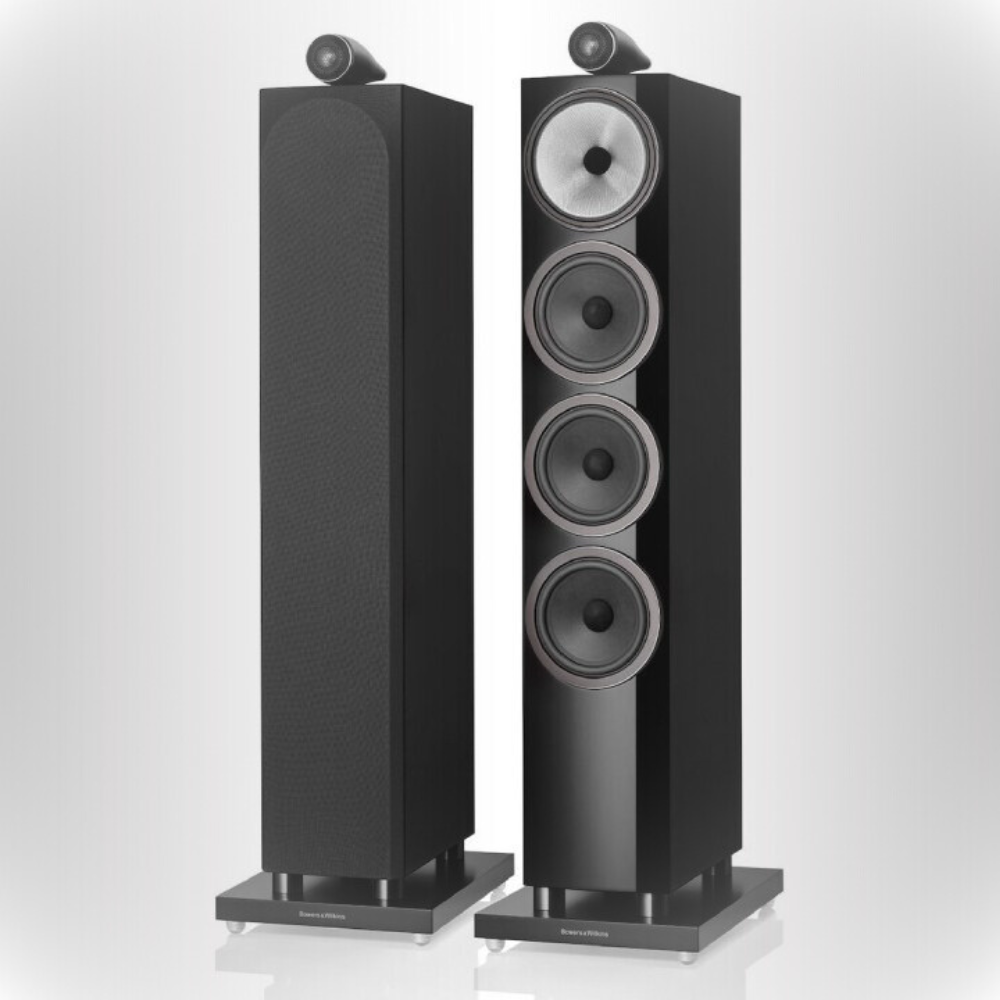

Introducing the 702 S3 Loudspeakers
The 702 S3's Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, delivering an enhanced sound experience. With a new downward-firing port configuration and a trio of Aerofoil Profile bass cones, it produces bass that's both profoundly deep and endlessly articulate. This speaker system is engineered for audiophiles who demand precision, clarity, and an immersive listening experience.
Key Features
- Decoupled Carbon Dome Tweeter
- Solid Body Tweeter-on-Top Assembly
- Continuum™ Cone FST™ Midrange for Enhanced Clarity
- Decoupled Midrange for Precise Sound
- Aerofoil™ Profile Bass Cones for Deep Bass Response
- Flowport™ Technology for Optimized Airflow
- 3-Way Vented-Box System for Full-Range Sound
Technical Specifications
| Specification |
Details |
| Net Weight |
33.46kg (73.8 lb) |
| Dimensions (Height) |
1010 mm (39.8 in) cabinet only, 1138 mm (44.8 in) including tweeter and plinth |
| Dimensions (Width) |
192 mm (7.6 in) cabinet only, 290 mm (11.4 in) including plinth |
| Dimensions (Depth) |
354 mm (13.9 in) cabinet only, 391 mm (15.4 in) including grille and terminals, 410 mm (16.1 in) including plinth |
| Drive Units |
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency, 1x ø150mm (6 in) Continuum cone FST midrange, 3x ø165mm (6.5 in) Aerofoil Profile bass |
| Frequency Range |
28Hz to 33kHz |
| Frequency Response |
46Hz - 28kHz ±3dB |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m on axis) < 1% 86Hz - 28kHz, < 0.5% 110Hz - 20kHz |
| Nominal Impedance |
8Ω (minimum 3.1Ω) |
| Recommended Amplifier Power |
30W - 300W into 8Ω on unclipped programme |
| Sensitivity |
90dB spl (2.83Vrms, 1m) |
| Max Recommended Cable Impedance |
0.1Ω |
| Finish Options |
Gloss Black, Satin White, Mocha |
| Grille Finish |
Black, Grey (Satin White only) |
