Introduction

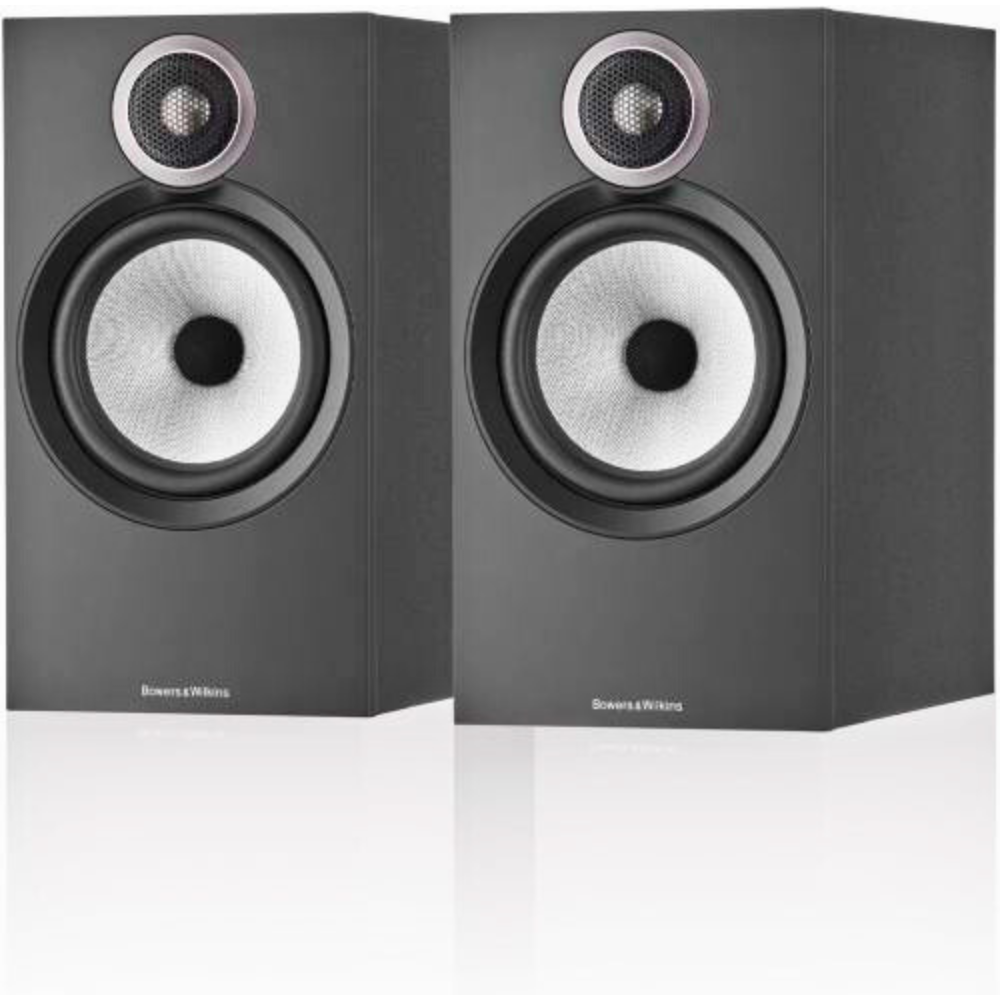

The 606 S3 stand-mount speaker provides the ideal combination of size and performance. It combines our all-new Titanium Dome™ tweeter with the powerful accuracy and transparency of our acclaimed Continuum™ bass/midrange cone. Please note that stands are not included with the product.
Key Features
- All-new Titanium Dome™ tweeter for high-frequency clarity.
- Continuum™ bass/midrange cone for powerful accuracy and transparency.
- Compact design that balances size and performance.
- Decoupled Double Dome Titanium tweeter for enhanced detail.
- Flowport™ for improved bass response and clarity.
- 2-way vented-box system for superior sound quality.
Technical Specifications
| Specification |
Details |
| Net Weight |
7.05kg (15.5 lb) |
| Dimensions (Cabinet Only) |
Height: 344 mm (13.6 in)
Width: 189 mm (7.4 in)
Depth: 300 mm (11.8 in) |
| Dimensions (Including Grille and Terminals) |
328 mm (12.9 in) |
| Drive Units |
1x Ø25mm (1 in) Titanium Dome high-frequency
1x Ø165mm (6.5 in) Continuum cone bass/midrange |
| Frequency Range |
-6dB 40Hz - 33kHz |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 12kHz |
| Nominal Impedance |
8Ω (minimum 3.7Ω) |
| Recommended Amplifier Power |
30W - 120W into 8Ω on unclipped programme |
| Max Recommended Cable Impedance |
0.1Ω |
| Frequency Response (+/-3dB) |
52Hz - 28kHz ±3dB |
| Sensitivity |
88dB (on axis at 2.83Vrms at 1m) |
