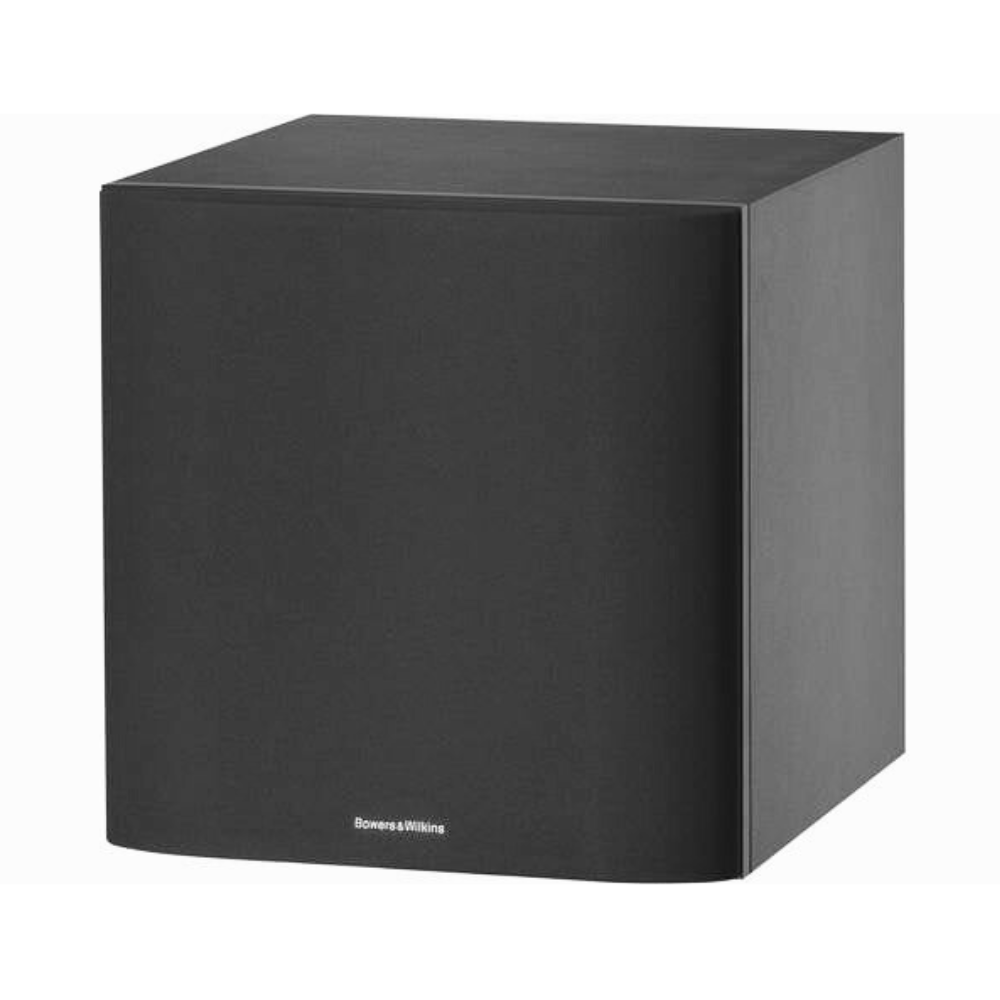

ASW610 Active Subwoofer
The ASW610 is a high-performance active subwoofer designed to deliver exceptional low-frequency output. Featuring a long-throw 250mm driver, it effortlessly moves large volumes of air to create powerful, deep bass. The audiophile-standard amplifier ensures the unit stays cool and performs optimally, even during extended use. With adjustable frequency responses and versatile connectivity options, the ASW610 is perfect for audiophiles and home theater enthusiasts looking for a compact, high-quality subwoofer.
Key Features:

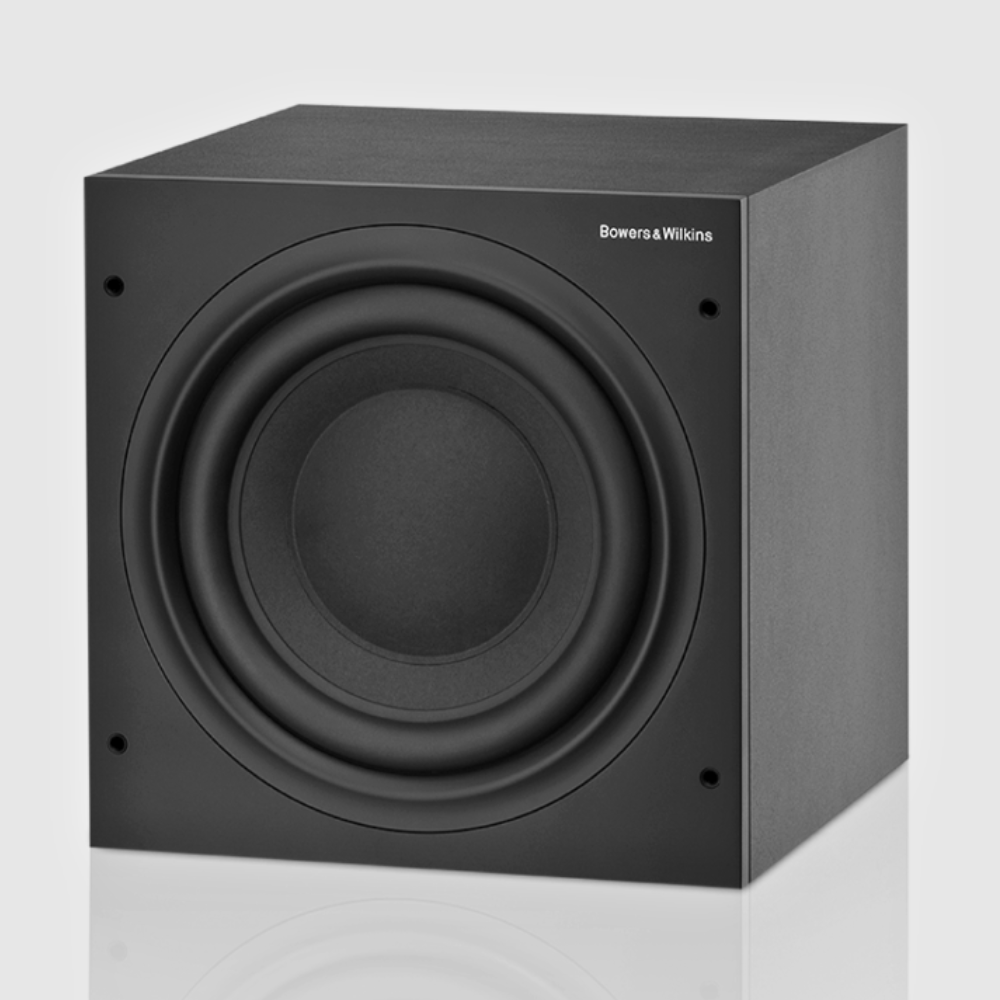

- Long-throw 250mm driver for superior low-frequency output
- Audiophile-standard amplifier for cool, efficient operation
- Adjustable frequency response from 27Hz to 140Hz
- Compact design with a choice of finishes to complement your space
- Multiple input options: Line in, Speaker in, and 12V trigger
- Active 4th-order low-pass filter with variable cut-off frequency
- Auto-sense standby function for energy efficiency
Technical Specifications:
| Specification |
Details |
| Net Weight |
12.5kg (27.6 lb) |
| Dimensions (Height) |
310mm (12.2 in) not including feet or spikes |
| Dimensions (Height with Feet) |
322mm (12.7in) including feet |
| Dimensions (Height with Spikes) |
338mm (13.3in) including spikes |
| Dimensions (Width) |
310mm (12.2 in) |
| Dimensions (Depth) |
347mm (13.66in) not including grilles |
| Dimensions (Depth with Grilles & Controls) |
375mm (14.8 in) including grilles and controls |
| Drive Unit |
ø250mm (10 in) Paper / Aramid fibre cone long-throw |
| Frequency Response |
±3dB 27Hz – 40 / 140Hz adjustable (EQ at A) |
| Frequency Range |
-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A) |
| Inputs |
Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack) |
| Low-pass Filter |
Active 4th-order, variable cut-off frequency |
| Power Consumption |
40W / 0.5W standby |
| Input Impedance |
33kΩ |
| Signal / Noise |
>90dB |
| Bass Extension |
-6dB at 20Hz (position A), -6dB at 25Hz (position B), -6dB at 30Hz (position C) |
| Cabinet Finishes |
Black, White |
| Grille Finishes |
Black, Grey |
