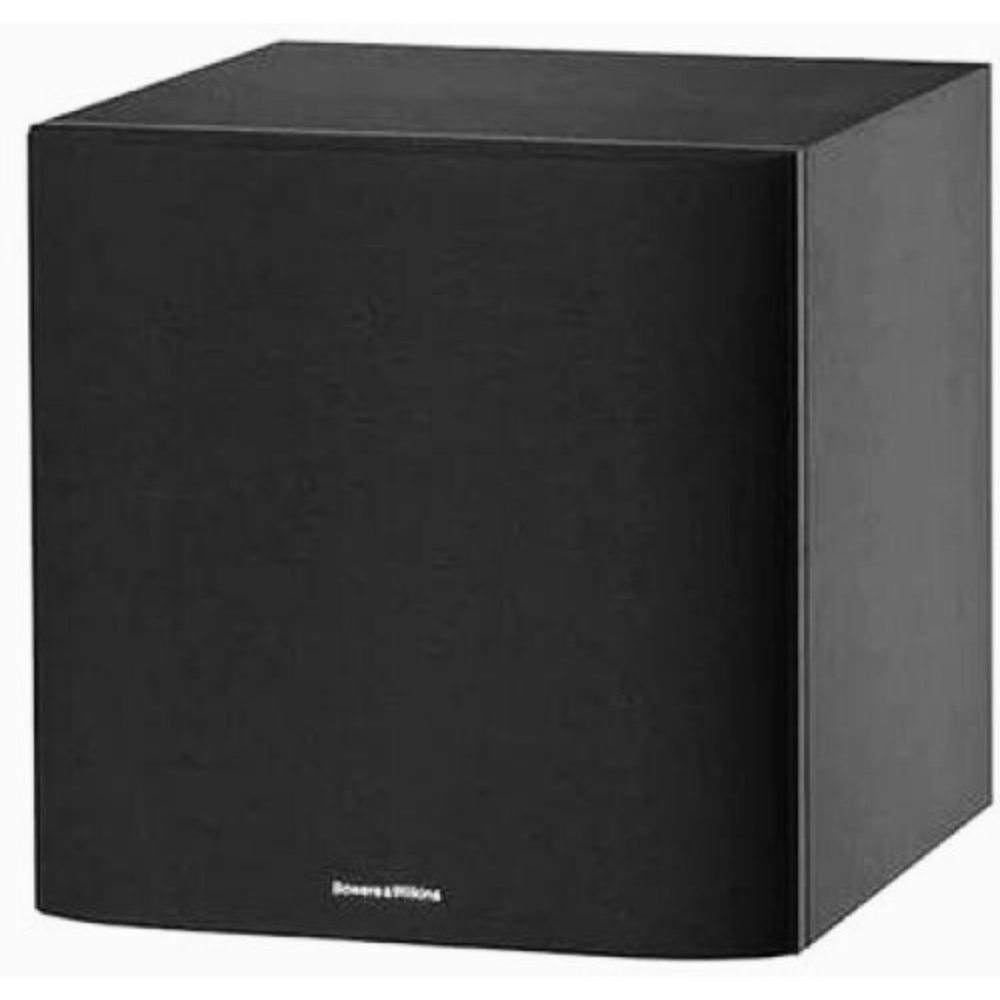

ASW610XP - Powerful Subwoofer for Larger Rooms
The ASW610XP, the most powerful of the AWS Series subwoofers, is designed to deliver the ultimate audio experience, adding the finishing touch – or finishing thump – to your hi-fi or home theater system. Ideal for larger rooms, this subwoofer boasts exceptional sound quality and powerful bass, bringing your entertainment to life with deep, impactful sound.
Key Features
-
High-Powered Performance: Delivers an exceptional level of bass for larger spaces.
-

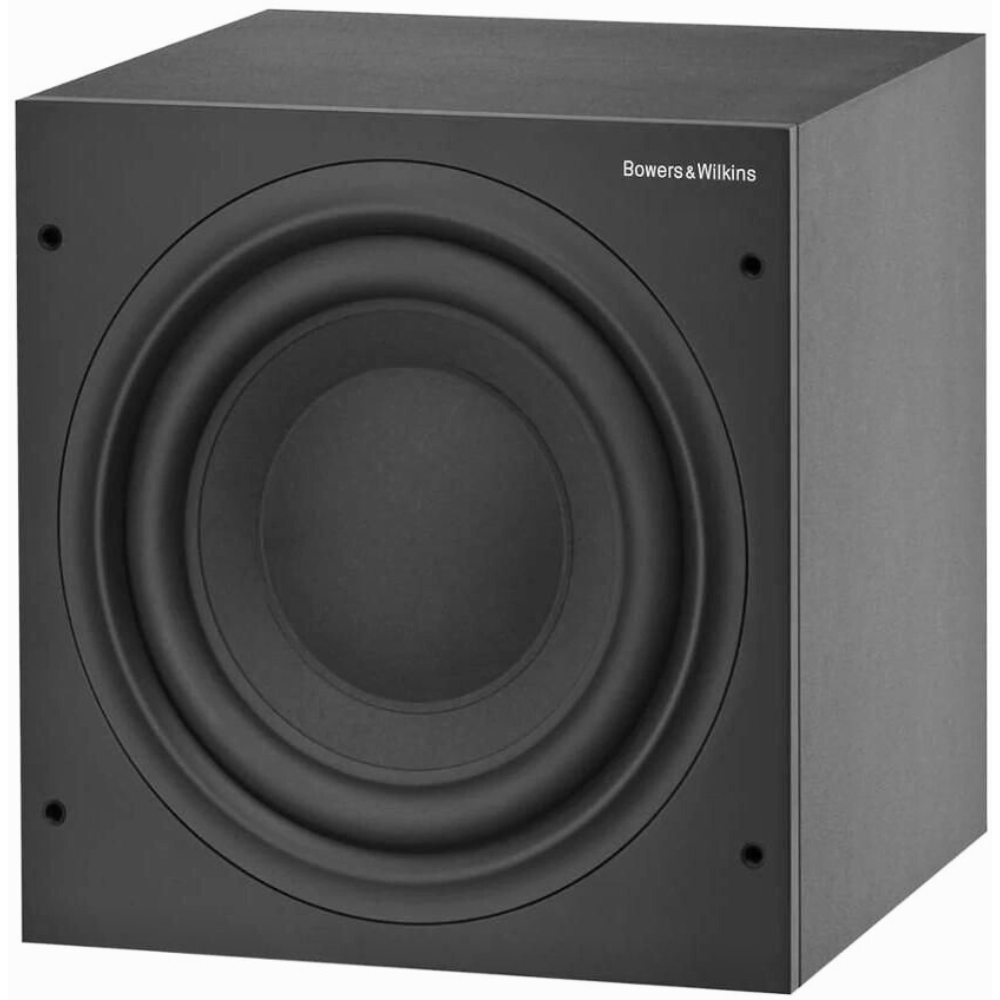

Precision Engineering: A 10-inch long-throw aramid fibre cone ensures high output with minimal distortion.
-
Adjustable Frequency Response: Frequency response adjustable between 25Hz to 140Hz for tailored sound.
-
Advanced Connectivity: Multiple input options including line-in, speaker-in, and 12v trigger.
-
Auto Sense On/Standby: Automatically powers on when a signal is detected and goes into standby mode when inactive.
Technical Specifications
| Specification |
Details |
| Net Weight |
18.65 kg (41.12 lb) |
| Dimensions (Height) |
325mm (12.8in) excluding feet or spikes, 337mm (13.3in) including feet, 353mm (13.9in) including spikes |
| Dimensions (Width) |
325mm (12.8in) |
| Dimensions (Depth) |
348mm (13.68in) excluding grilles, 375mm (14.8in) including grilles and controls |
| Drive Unit |
ø250mm (10 in) Paper / Aramid fibre cone long-throw |
| Frequency Response |
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A) |
| Input Level (Line In) |
Adjustable |
| Input Level (Speaker In) |
Adjustable |
| Low-Pass Filter Frequency (Line In only) |
Active 4th-order, variable cut-off frequency |
| Low-Pass Filter Bypass |
Yes |
| Bass Extension |
-6dB at 18Hz (Position A), -6dB at 23Hz (Position B), -6dB at 28Hz (Position C) |
| Bass Roll-Off Alignment |
Adjustable |
| Auto Sense On/Standby |
Yes |
| Phase Switch |
Yes |
| Frequency Range |
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A) |
| Inputs |
Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack) |
| Power Consumption |
98W / 1W standby |
| Input Impedance |
33kΩ |
| Signal / Noise |
>80dB |
