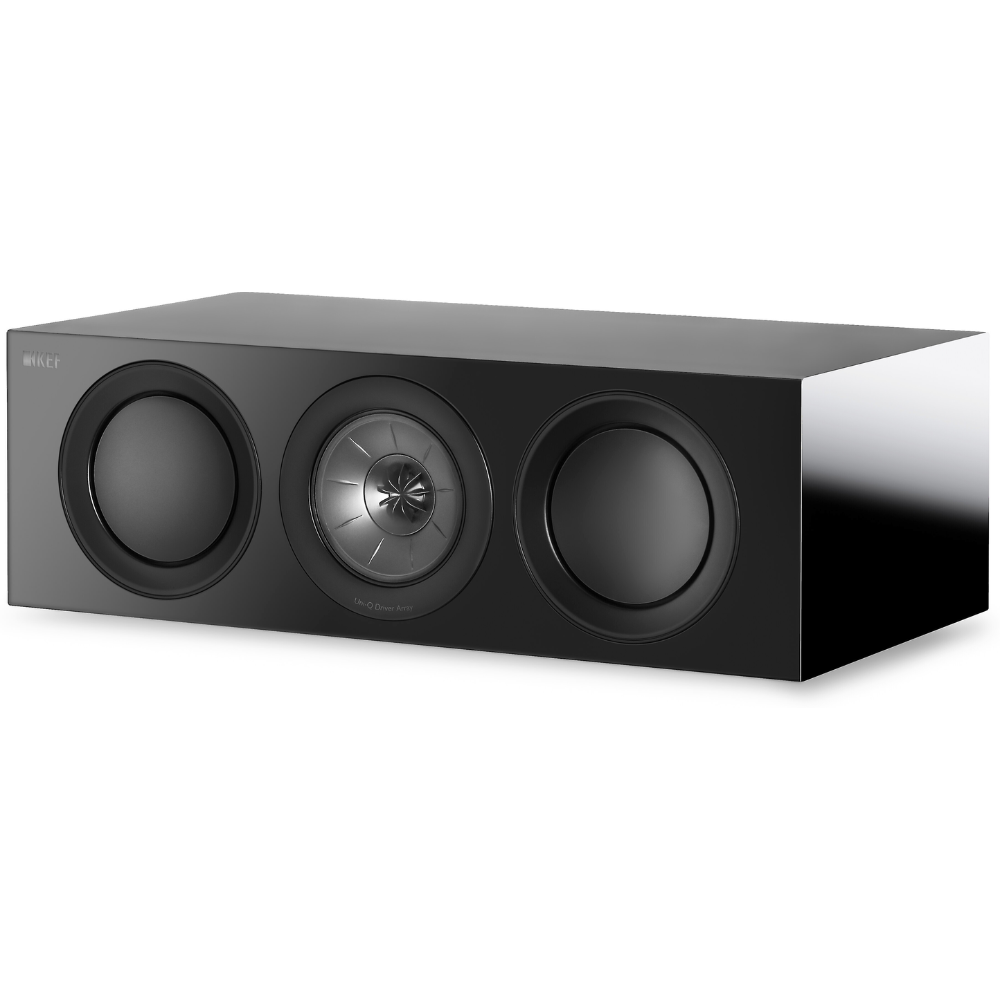

The R2c three-way centre channel speaker is built to complement any of the R Series floorstanders, delivering crystal-clear dialogue that brings movies to life in your home theater setup. Featuring a 125mm (5 in.) midrange and a 25mm (1 in.) aluminium dome tweeter, the R2c perfectly matches the entire R Series range. Additionally, its twin 130mm (5.25 in.) bass drivers offer the dynamic sound that your movies need for an immersive experience.
Key Features
-
Three-way design for accurate sound reproduction.
-
Uni-Q driver array with a 25mm (1 in.) vented aluminium dome tweeter and a 125mm (5 in.) aluminium cone midrange.
-
Dual 130mm (5.25 in.) hybrid aluminium bass drivers deliver the deep dynamics necessary for impactful sound.
-
Wide frequency range with a response from 64Hz to 50kHz, ensuring detailed sound across all ranges.
-
Compact design with dimensions of 175 x 550 x 308.5 mm (6.9 x 21.7 x 12.1 in.) with terminal.
-
Multiple finishes available: Black Gloss, White Gloss, and Walnut.
Technical Specifications
| Specification |
Details |
| Design |
Three-way closed box |
| Weight |
16.9 kg (37.3 lbs.) |
| Dimensions (H x W x D) |
175 x 550 x 308.5 mm (6.9 x 21.7 x 12.1 in.) with terminal |
| Dimensions (H x W x D) |
175 x 550 x 285 mm (Cabinet only) |
| Crossover Frequencies |
400Hz, 2.9kHz |
| Frequency Range |
64Hz-50kHz (-6dB) |
| Sensitivity |
87dB (2.83V/1m) |
| Typical In-Room Bass Response |
49Hz (-6dB) |
| Frequency Response |
74Hz-28kHz (±3dB) |
| Harmonic Distortion |
<0.3% 120Hz-20kHz (90dB, 1m) |
| Maximum Output |
110dB |
| Amplifier Power |
15-200W (recommended) |
| Nominal Impedance |
8 Ohms (min.3.2 Ohms) |
| Drive Units |
Uni-Q Driver Array: HF: 25mm (1in.) vented aluminium dome, MF: 125mm (5in.) aluminium cone; Bass Driver: 2 x 130mm (5.25in.) hybrid aluminium |
| Finishes |
Black Gloss / White Gloss / Walnut |
