Product Overview

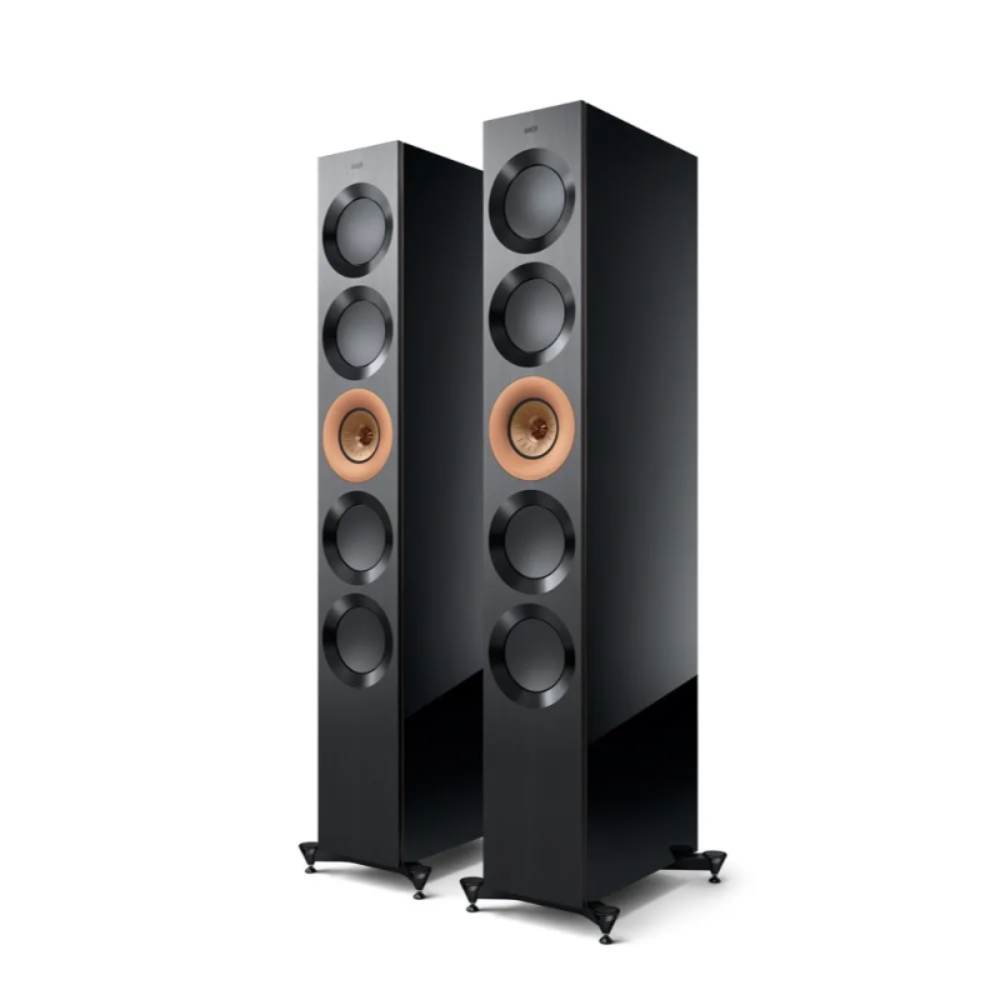

The product features a highly advanced three-way bass reflex design with a powerful Uni-Q driver array for superior sound clarity and bass performance. The four aluminium bass units deliver deep, detailed low frequencies, while the wide frequency range ensures an immersive listening experience. Whether you're listening at a low or high volume, this speaker offers consistent sound quality with remarkable accuracy.
Key Features
-
Three-Way Bass Reflex Design: Provides enhanced bass performance and clear sound across a wide frequency range.
-
Uni-Q Driver Array: Features a 25mm aluminium dome HF driver and a 125mm aluminium cone MF driver, ensuring precise and detailed sound.
-
Four Bass Units: 4 x 165mm (6.5 in.) aluminium cones for deep, impactful bass.
-
Wide Frequency Range: Short port offers a frequency range of 35Hz to 45kHz, while the long port extends to 32Hz for fuller sound.
-
High Sensitivity: With a sensitivity of 88dB, this speaker delivers a clear and vibrant sound.
-
Powerful Amplifier Requirements: Suitable for amplifiers ranging from 50W to 400W, making it adaptable for various setups.
Technical Specifications
| Design |
Three-way bass reflex |
| Drive Units |
Uni-Q driver array: HF: 25 mm (1 in.) aluminium dome with MAT, MF: 125 mm (5 in.) aluminium cone |
| Bass Units |
LF: 4 x 165 mm (6.5 in.) aluminium cone |
| Frequency Range (Free Field -6dB) |
Short port: 35Hz - 45kHz, Long port: 32Hz - 45kHz |
| Frequency Range (Typical in Room Bass Response -6dB) |
25Hz |
| Frequency Response (±3dB) |
40Hz – 35kHz |
| Crossover Frequency |
450 Hz, 2.1 kHz |
| Amplifier Requirements |
50 - 400W |
| Sensitivity (2.83V/1m) |
88dB |
| Harmonic Distortion (2nd & 3rd Harmonics at 90dB, 1m) |
<0.5% 40Hz – 100kHz, <0.2% 200Hz – 2kHz, <0.1% 2kHz - 20kHz |
| Maximum Output (Peak Sound Pressure Level at 1m with Pink Noise) |
116dB |
| Impedance |
4 Ω (min. 3.2 Ω) |
| Weight |
60.2 kg (132.7 lbs.) |
| Dimensions (H x W x D) with Grille and Terminal |
1350 x 205 x 462 mm (53.1 x 8.1 x 18.2 in.) |
| Dimensions (H x W x D) with Grille, Terminal & Plinth |
1402 x 323 x 467 mm (55.2 x 12.7 x 18.4 in.) |
