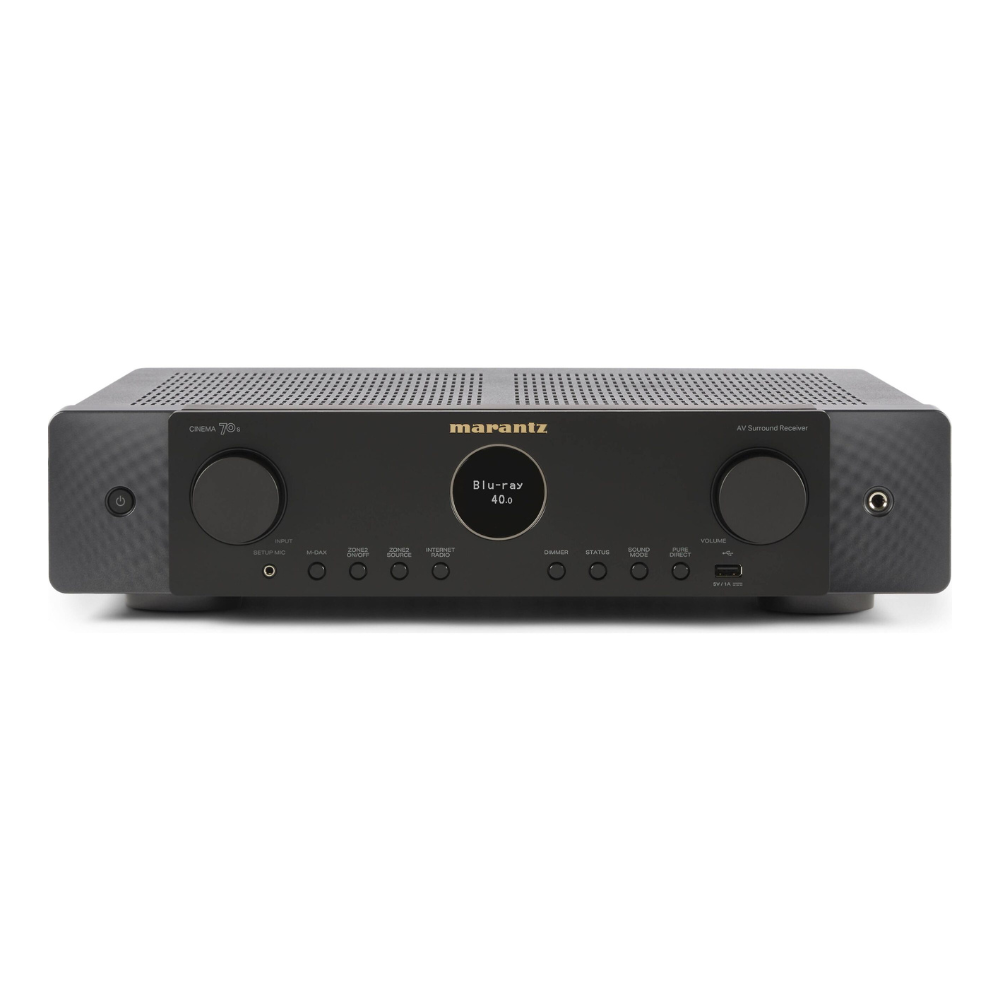

CINEMA 70s - Compact, High-Performance Audio Experience
The CINEMA 70s combines a slimline design with exceptional audio performance, creating an immersive theater experience in spaces where larger equipment cannot fit. With the latest immersive audio formats and a brand-new HD graphical user interface, setup is intuitive and simple—even from the comfort of your sofa.
Key Features:
- Ultra-compact and slimline design perfect for smaller spaces
- 7.2 channel surround sound
- 50 Watts per channel for powerful audio output
- 6 HDMI inputs, including eARC support for seamless connectivity
- Supports 8K video and Dolby Atmos for next-gen audio-visual quality
- HEOS built-in for multi-room audio streaming
- Power amplifier with discrete power amp topology
Technical Specifications:
| Specification |
Details |
| Power Amplifier |
Discrete |
| Number of Powered Channels |
7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) |
50 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
70 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
100 W |
| Multichannel Surround Technologies |
DTS HD Master, DTS:X, Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualization |
| HDMI Inputs |
6 (3 support 8K) |
| HDMI Outputs |
1 |
| Max Resolution @ Framerate |
8K/60Hz, 4K/120Hz |
| Audio Return Channel |
ARC, eARC |
| Streaming Services |
Spotify Connect, Pandora, Amazon Music HD, TIDAL, Deezer, TuneIn, SoundCloud, and more |
| Network Connectivity |
Wi-Fi, Ethernet, Bluetooth |
| Voice Assistant Compatibility |
Alexa, Google Assistant, Apple HomePod |
| Power Consumption |
250 W (maximum), 30 W (standby ECO mode) |
| Dimensions (W x D x H) |
17.4 x 15.1 x 4.3 inches (without antenna) |
| Weight |
19.2 lbs |
What's in the Box:
- Main unit
- Remote control
- Batteries
- AM/FM antennas
- Wire labels
- Quick start guide
- Audyssey microphone with cardboard stand
- 2 External Detachable Antennas
- AC power cord
