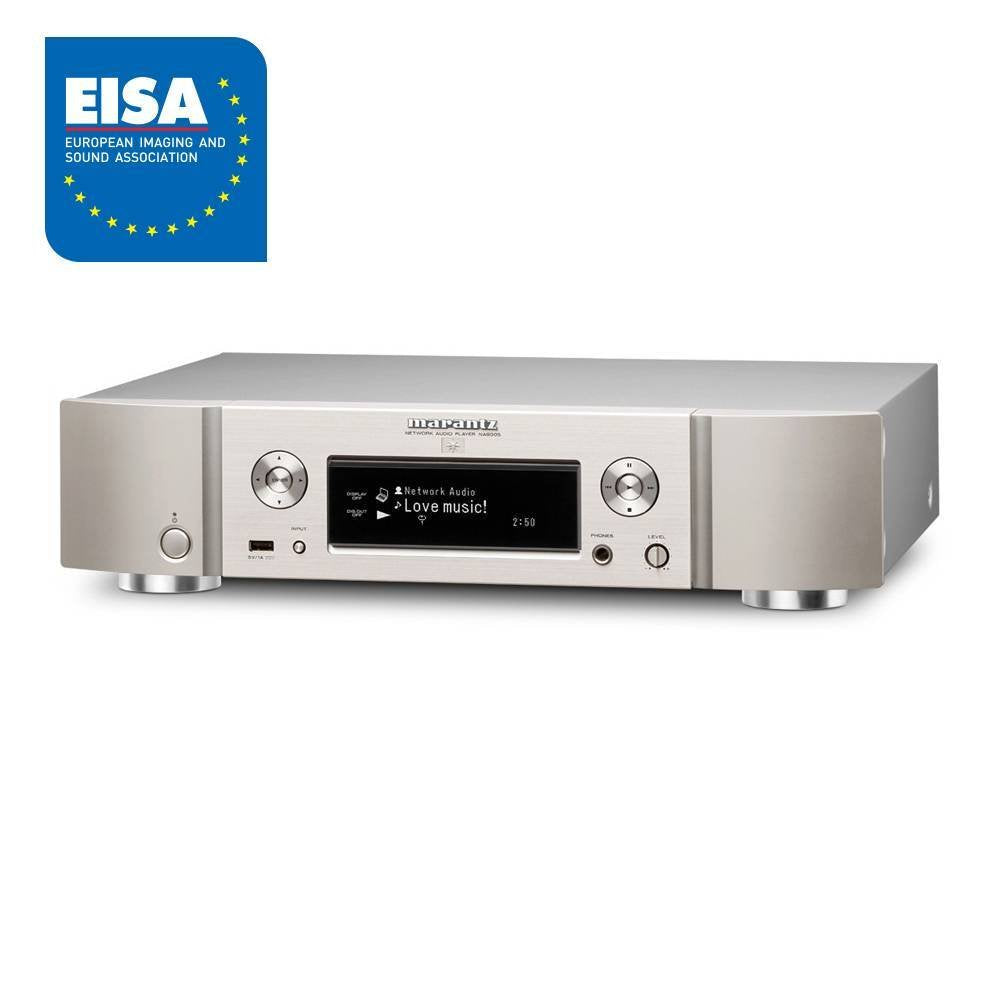

Marantz NA8005 - Network Audio Player
Enjoy audiophile-grade sound quality from a variety of music sources with NA8005 Network Audio Player from Marantz. With built-in AirPlay connectivity, the NA8005 has the ability to stream music from devices such as iPhones, iPods, and iPads. An on-board Ethernet port allows you to access a wide variety of Internet music sources and DLNA streaming content.
Technical specification
|
AirPlay
|
Yes
|
|
DLNA
|
Yes
|
|
Wi-Fi
|
None
|
|
AM/FM Tuner
|
None
|
|
Bluetooth
|
None
|
|
Supported File Formats
|
-
Lossy: MP3, WMA, AAC
-
Lossless: DSD, FLAC 192/24, ALAC 96/24, WAV 192/24, AIFF 192/24
-
Gapless: FLAC, WAV, DSD, AIFF
|
|
Network Audio Files Supported
|
-
WMA at 32/44.1/48 kHz and 48-192 kb/s
-
MP3 at 32/44.1/48 kHz and 32-320 kb/s
-
WAV at 32/44.48/88.2/96/176.4/192 kHz
-
MPEG-4 AAC at 32/44.1/48 kHz and 16-320 kb/s
-
FLAC at 32/44.48/88.2/96/176.4/192 kHz
-
ALAC at 32/44.1/48/88.2/96 kHz
-
AIFF at 32/44.48/88.2/96/176.4/192 kHz
-
DSD (stereo) at 2.8 - 5.6 MHz
|
|
Digital-to-Analog Converter (DAC)
|
-
Type: Multi-bit, Delta-Sigma
-
DAC IC: CS4398
-
Digital Filter: CS4398
-
Noise Shaper: CS4398
|
|
Sample Rate
|
USB Input: 192 kHz / 24-bit and DSD 2.8/5.6
|
|
Inputs
|
-
1 x Digital optical
-
1 x Digital coaxial
-
1 x USB-B DAC
-
1 x IR flasher
-
1 x Remote
|
|
Outputs
|
-
1 x Digital optical
-
1 x Digital coaxial
-
1 x Stereo RCA
-
1 x ¼" / 6.35 mm headphone (front)
-
1 x Remote
|
|
Other Ports
|
-
1 x USB-A 5 V / 1 A (front)
-
1 x RS-232C
-
1 x Ethernet
-
1 x AC power
|
|
Construction
|
Metal front panel
|
|
Power Requirements
|
120 VAC, 60 Hz
|
|
Power Consumption
|
30 W
|
|
Standby Power Consumption
|
0.4 W
|
|
Dimensions (WxDxH)
|
17.3 x 13.2 x 4.1" / 44.0 x 33.6 x 10.5 cm
|
|
Weight
|
15.9 lb / 7.2 kg
|
