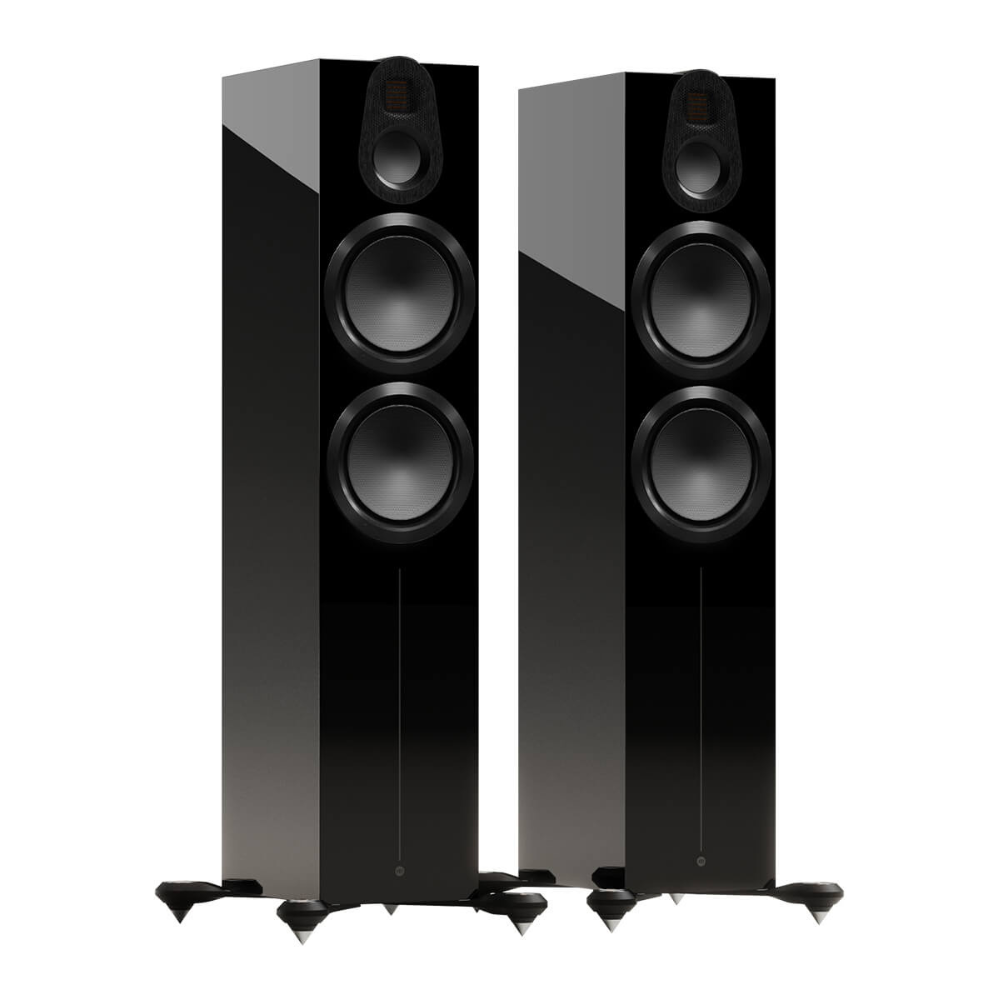

Gold 500 6G Flagship Speaker
The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest levels of performance and system design at its price point and within this competitive market segment. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each benefiting from the latest HDT, C-CAM cone technology and robust motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range, providing a formidable acoustic experience that is a treat for both the ears and the eyes.
Key Features
- Three-way design
- 1 x MPD III high-frequency transducer
- 1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
- Steel mid-pod enclosure with die-cast aluminium baffle
- 2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
- New crossover design utilising carefully selected high-quality capacitors
- Ported cabinet design using HiVe II port technology and through-bolt technology
- All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability
- Finishes available: Macassar wood veneer, High-Gloss Black, and Satin White
- Individual driver ‘Magnetic grilles’ included
Technical Specifications
| System Format |
3-way |
| Sensitivity (2.83v @ 1m, Free-Field) |
88.5 dB |
| Sensitivity (2.83v @ 1m, Installed) |
N/A |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) |
130 – 600 W |
| Continuous Power Handling (CTA 426-B) |
300 W |
| Nominal Impedance |
4 Ohms |
| Minimum Impedance (20Hz to 20kHz) |
4 Ohms @ 150 Hz |
| Drive Unit Complement |
2 x 8” (203 mm) HDT C-CAM Bass Drivers
1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
1 x MPD III Tweeter |
| Frequency Response Free-Field (-6dB) |
44 Hz – 60 kHz |
| Frequency Response, In-Room (-6dB) |
25 Hz – 60 kHz |
| Maximum Peak SPL (AES75, Z-weighted) |
122 dB |
| Bass Alignment |
HiVe II Ported |
| Port Tuning Frequency |
33 Hz |
| Crossover Frequency |
LF/MF: 700 Hz
MF/HF: 2.6 kHz |
| External Dimensions with all accessories fitted (H x W x D) |
1155 x 383 x 475 mm (451/2 x 151/16 x 1811/16”) |
| Weight (each) |
26.5 kg (58 lb 7 oz) |
| Sold As |
Pair |
