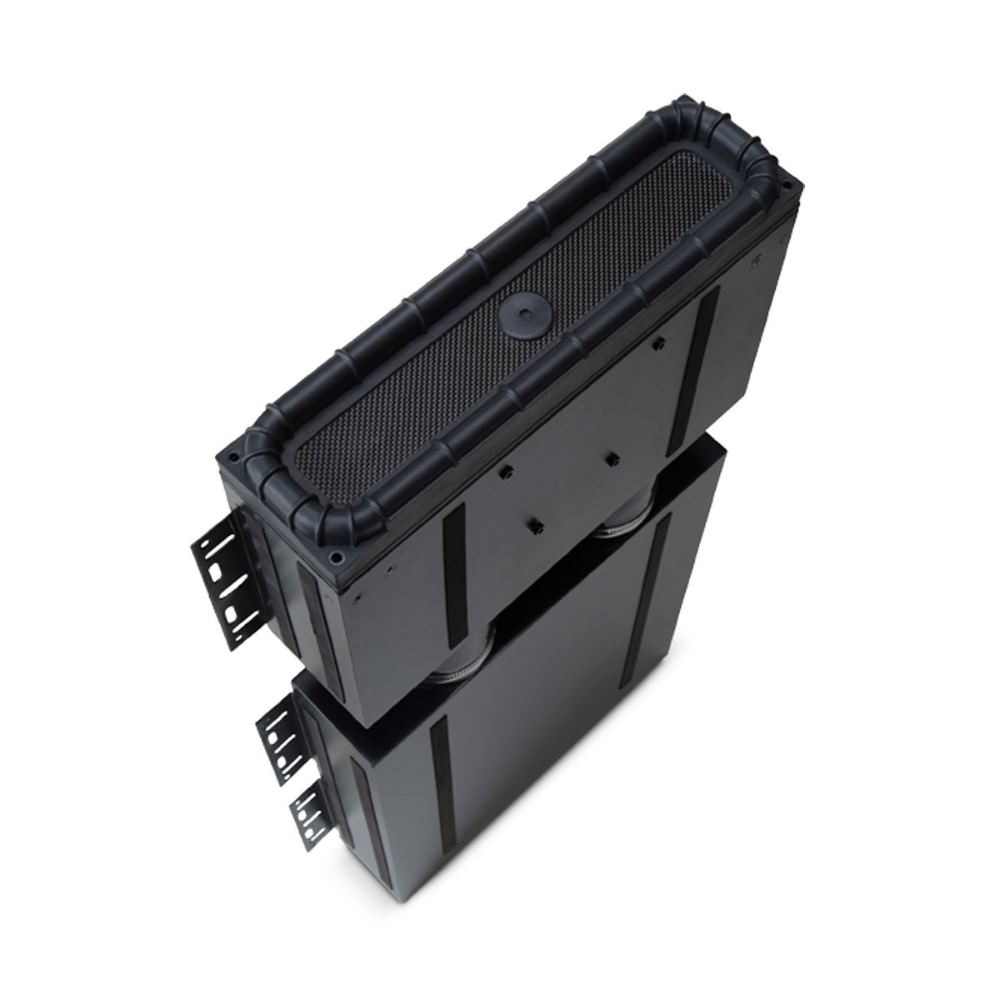

Velodyne Acoustics SubContractor Series
Performance like nothing else
No compromises: Built directly into the wall, these bass wonders remain completely invisible despite impressive performance. Due to inconspicuous wall mounting, subwoofers of the SubContractor series are not seen but felt and heard from their acoustically optimal working environment. The uncompromising solution for professionals.
Key Features:
-
Housing Shape: Fits flush into standard-compliant drywalls.
-
Easy Installation: Two-part closed housing for the easiest installation.
-
Unobtrusive Sound Outlet: Designed for minimal visual impact while delivering maximum sound performance.
-
Innovative T-shaped Driver Chassis: Patent-pending chassis arranged vertically for minimal vibration excitation of the wall.
-
Powerful Dual Voice Coil: 3″ dual voice coil per driver chassis with powerful neodymium magnets for enhanced sound output.
Technical Specifications:
| Driver |
4″ x 14″ rectangular driver (3″ x 12.25″ piston dimensions) |
| Frequency Response (± 3 dB) |
22 – 120 Hz |
| THD |
< 5 % (typical) |
| Magnet Structure |
275 oz. Neodymium motor structure |
| Voice Coil |
3″ Dual Layer inner/outer wind |
| Dimensions (H/W/D) |
28.5″ x 14″ x 3.5″ (72 x 35.56 x 8.89 cm) |
| Shipping Weight (approx) |
19.5 kg |
